ALLSTAR

ALLSTAR is a manufacturer of radio control and locking hardware for garage doors, gate operators, and loading dock equipment. The brand's product line includes radio transmitters, remote antennas, and slide locks, all designed for integration with door and gate automation systems. ALLSTAR components are commonly specified in material handling, dock loading, and industrial door applications where reliable remote operation and secure locking are required. The radio transmitters operate with momentary contacts and are configured for Open-Close-Stop control, providing a straightforward interface for compatible door operators. These transmitters are surface-mount, indoor-use devices that ship with a 9V battery, allowing immediate commissioning. The remote antenna, such as the RAK-10A, includes a coaxial cable to extend or improve signal reception in installations where the operator's receiver is distant or shielded. The slide locks are bolting-type mechanisms with specific dimensional profiles: for example, the S100-A2 has a 5-1/2 in arm length, 3 in base length, 3-1/8 in base width, and 1-1/4 in overall depth, while the G100-A2 has a 2-1/2 in base length, 4-3/8 in base width, 5/16 in arm width, and 1-1/4 in overall depth. These locks are used to secure sliding garage doors in material handling and dock loading environments. ALLSTAR products are characterized by their focus on functional, application-specific design rather than broad automation platforms. The radio transmitters are not universal remotes; they are intended for use with door operators that accept momentary contact closures and Open-Close-Stop logic. The antennas are passive accessories that require a compatible receiver input. The locks are mechanical bolt assemblies that mount to the door and jamb, providing a physical barrier when engaged. 3G Electric supplies the ALLSTAR line as part of its industrial equipment catalog, offering multiple SKUs with global logistics support. For plant engineers and maintenance managers, this means access to replacement transmitters, antennas, and locks that match existing ALLSTAR installations, as well as components for new door and gate projects. Procurement specialists can obtain current pricing and availability by requesting a quote. The product data provided includes manufacturer part numbers, contact forms, and physical dimensions, enabling accurate cross-referencing and fit verification before order placement. 3G Electric does not modify or rebrand ALLSTAR products; items are supplied as factory-configured components. Technical documentation, when available, is provided to support installation and troubleshooting. The ALLSTAR range is not a complete door operator system; it is a set of accessories and locking hardware that complement third-party operators and door structures. This modular approach allows maintenance teams to stock specific transmitters, antennas, and locks without replacing entire control systems. The radio transmitters are available in multiple SKUs, each with the same core specification: momentary contacts, indoor surface mount, and 9V battery included. The slide locks differ in mounting dimensions and arm geometry to suit various door profiles and load requirements. ALLSTAR products are used in applications where remote control and secure locking are needed but where a full automation overhaul is not justified. Typical settings include warehouse sliding doors, dock leveler access doors, and gate operators in industrial yards. The brand's components are also found in material handling equipment where door openers are integrated with conveyor or vehicle access systems. 3G Electric maintains inventory and sourcing channels for ALLSTAR SKUs, supporting both single-unit replacements and project quantities. The company's global reach means customers outside North America can obtain these components without regional restrictions. For technical selection, buyers should verify voltage compatibility, contact rating, and physical mounting dimensions against their existing equipment. ALLSTAR does not publish a universal compatibility list; instead, compatibility is determined by the operator's input requirements and the lock's mounting pattern. 3G Electric can provide datasheets and dimension drawings where available to assist with verification. The ALLSTAR line is not intended for safety-critical applications such as personnel protection or emergency egress; it is designed for property access and operational control. Installers should follow local codes and manufacturer instructions for door and gate safety. In summary, ALLSTAR supplies focused radio control and locking hardware for garage doors and gate operators, and 3G Electric distributes these components globally with logistics and quoting support.

Genuine
OEM Parts
Expert
Tech Support
1 Day
Quote Response
Worldwide
Origin
EXW Singapore
Collect or forward from our office
Datasheets on Request
Technical specs & drawings
1-Day Quote Response
Singapore-based team
Show
Page 1 of 1

About ALLSTAR

ALLSTAR is a manufacturer of radio control and locking hardware for garage doors, gate operators, and loading dock equipment. The brand's product line includes radio transmitters, remote antennas, and slide locks, all designed for integration with door and gate automation systems. ALLSTAR components are commonly specified in material handling, dock loading, and industrial door applications where reliable remote operation and secure locking are required. The radio transmitters operate with momentary contacts and are configured for Open-Close-Stop control, providing a straightforward interface for compatible door operators. These transmitters are surface-mount, indoor-use devices that ship with a 9V battery, allowing immediate commissioning. The remote antenna, such as the RAK-10A, includes a coaxial cable to extend or improve signal reception in installations where the operator's receiver is distant or shielded. The slide locks are bolting-type mechanisms with specific dimensional profiles: for example, the S100-A2 has a 5-1/2 in arm length, 3 in base length, 3-1/8 in base width, and 1-1/4 in overall depth, while the G100-A2 has a 2-1/2 in base length, 4-3/8 in base width, 5/16 in arm width, and 1-1/4 in overall depth. These locks are used to secure sliding garage doors in material handling and dock loading environments. ALLSTAR products are characterized by their focus on functional, application-specific design rather than broad automation platforms. The radio transmitters are not universal remotes; they are intended for use with door operators that accept momentary contact closures and Open-Close-Stop logic. The antennas are passive accessories that require a compatible receiver input. The locks are mechanical bolt assemblies that mount to the door and jamb, providing a physical barrier when engaged. 3G Electric supplies the ALLSTAR line as part of its industrial equipment catalog, offering multiple SKUs with global logistics support. For plant engineers and maintenance managers, this means access to replacement transmitters, antennas, and locks that match existing ALLSTAR installations, as well as components for new door and gate projects. Procurement specialists can obtain current pricing and availability by requesting a quote. The product data provided includes manufacturer part numbers, contact forms, and physical dimensions, enabling accurate cross-referencing and fit verification before order placement. 3G Electric does not modify or rebrand ALLSTAR products; items are supplied as factory-configured components. Technical documentation, when available, is provided to support installation and troubleshooting. The ALLSTAR range is not a complete door operator system; it is a set of accessories and locking hardware that complement third-party operators and door structures. This modular approach allows maintenance teams to stock specific transmitters, antennas, and locks without replacing entire control systems. The radio transmitters are available in multiple SKUs, each with the same core specification: momentary contacts, indoor surface mount, and 9V battery included. The slide locks differ in mounting dimensions and arm geometry to suit various door profiles and load requirements. ALLSTAR products are used in applications where remote control and secure locking are needed but where a full automation overhaul is not justified. Typical settings include warehouse sliding doors, dock leveler access doors, and gate operators in industrial yards. The brand's components are also found in material handling equipment where door openers are integrated with conveyor or vehicle access systems. 3G Electric maintains inventory and sourcing channels for ALLSTAR SKUs, supporting both single-unit replacements and project quantities. The company's global reach means customers outside North America can obtain these components without regional restrictions. For technical selection, buyers should verify voltage compatibility, contact rating, and physical mounting dimensions against their existing equipment. ALLSTAR does not publish a universal compatibility list; instead, compatibility is determined by the operator's input requirements and the lock's mounting pattern. 3G Electric can provide datasheets and dimension drawings where available to assist with verification. The ALLSTAR line is not intended for safety-critical applications such as personnel protection or emergency egress; it is designed for property access and operational control. Installers should follow local codes and manufacturer instructions for door and gate safety. In summary, ALLSTAR supplies focused radio control and locking hardware for garage doors and gate operators, and 3G Electric distributes these components globally with logistics and quoting support.

Common Applications

  • Warehouse sliding doors — ALLSTAR S100-A2 slide lock for securing dock access doors in material handling areas
  • Gate operator remote control — ALLSTAR 36T049 radio transmitter with Open-Close-Stop momentary contacts for indoor gate control
  • Loading dock door automation — ALLSTAR RAK-10A remote antenna to improve signal reception for door opener receivers
  • Industrial door replacement parts — ALLSTAR G100-A2 slide lock for sliding garage doors with specific mounting dimensions
  • Material handling equipment — ALLSTAR 733T radio transmitter for wireless control of compatible door operators
  • Dock loading security — ALLSTAR bolting slide locks for manual securing of sliding doors in dock loading applications

Frequently asked questions

Common questions about ALLSTAR from 3G Electric.

What are the key specifications of ALLSTAR radio transmitters?

ALLSTAR radio transmitters, such as those in the 36T series, are indoor surface-mount devices with momentary contacts for Open-Close-Stop control. They include a 9V battery and are designed for use with compatible garage door openers and gate operators. The contact form is momentary, meaning the signal is active only while the button is pressed. These transmitters are not programmable universal remotes; they are fixed-code or compatible with specific receiver types. Buyers should verify the frequency and coding method against their existing operator receiver. The transmitters are intended for indoor installation, typically in a control station or wall-mount enclosure. They do not carry an IP rating for outdoor or washdown environments. For outdoor or harsh locations, a suitable enclosure is required. 3G Electric supplies multiple SKUs with the same core specification, allowing selection based on available part numbers or existing inventory.

What is the ALLSTAR RAK-10A remote antenna used for?

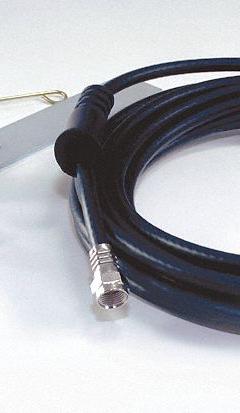

The ALLSTAR RAK-10A is an indoor remote antenna with a coaxial cable, designed to improve radio signal reception for garage door openers and gate operators. It is used when the operator's receiver is located in a shielded area or when the distance from the transmitter is too great for reliable communication. The antenna connects to the receiver's antenna input and should be mounted away from metal structures that can attenuate radio signals. It is a passive accessory and does not require power. The included coaxial cable allows positioning the antenna for best reception. This product is not a signal amplifier; it is a remote antenna that relocates the reception point. Installers should consult the operator's manual for compatible antenna inputs and impedance requirements. The RAK-10A is intended for indoor use only and does not carry an outdoor weather rating.

What are the differences between ALLSTAR slide locks S100-A2 and G100-A2?

The ALLSTAR S100-A2 and G100-A2 are both bolting-type slide locks for sliding garage doors, but they differ in mounting dimensions. The S100-A2 has a 5-1/2 in arm length, 3 in base length, 3-1/8 in base width, and 1-1/4 in overall depth. The G100-A2 has a 2-1/2 in base length, 4-3/8 in base width, 5/16 in arm width, and 1-1/4 in overall depth. These differences affect how the lock mounts to the door and jamb, and which door profiles they fit. Both are mechanical bolt locks that secure sliding doors in material handling and dock loading applications. They do not include cylinders or handles; they are operated manually or with a separate locking mechanism. Selection depends on the door's mounting surface and the required bolt engagement. Buyers should verify dimensions against the door structure before ordering.

Are ALLSTAR radio transmitters compatible with all garage door openers?

No. ALLSTAR radio transmitters are designed for use with door operators that accept momentary contact closures and Open-Close-Stop control logic. They are not universal remotes and do not work with all garage door openers. Compatibility depends on the operator's receiver frequency, coding method, and input configuration. The transmitters provide dry contacts, so they can interface with any operator that has a compatible input for momentary contact devices. However, the radio frequency and coding must match the receiver. ALLSTAR transmitters are typically used as replacements for existing ALLSTAR systems or as part of a specified installation. Buyers should check the operator's manual for receiver specifications and contact rating. 3G Electric can provide available documentation to assist with verification, but final compatibility determination rests with the installer.

What environments are ALLSTAR slide locks suitable for?

ALLSTAR slide locks are suitable for indoor and protected outdoor environments where sliding garage doors are used. They are commonly found in material handling and dock loading applications, such as warehouse doors, loading dock access doors, and industrial gate structures. The locks are mechanical and do not have electrical components, so they are not affected by power loss. However, they are not sealed against washdown or corrosive atmospheres; in such environments, additional protection or alternative materials may be required. The locks are designed for manual operation and provide a physical barrier when engaged. They should be installed according to the manufacturer's instructions and local building codes. Regular inspection and lubrication are recommended to maintain function. 3G Electric supplies these locks as factory components without modification.

How does 3G Electric support the ALLSTAR product line?

3G Electric supplies ALLSTAR radio transmitters, remote antennas, and slide locks as part of its industrial equipment catalog. The company offers multiple SKUs with global logistics support, allowing customers to obtain components for maintenance, repair, or new installations. 3G Electric does not manufacture or alter ALLSTAR products; items are supplied as factory-configured. For procurement, buyers can request a quote for specific part numbers, and 3G Electric will provide pricing and availability. Technical documentation, such as datasheets and dimension drawings, is provided where available to assist with selection and installation. 3G Electric serves plant engineers, maintenance managers, and procurement specialists across various industries, ensuring access to ALLSTAR components without regional restrictions. The company's role is distribution and logistics, not technical support for system integration, which should be obtained from the door operator manufacturer or a qualified installer.
