DAYTON IEC

DAYTON IEC is a line of electrical protection devices distributed under the Dayton brand, which is associated with OEM, a broad-line supplier of maintenance, repair, and operations (MRO) products. The Dayton name is widely recognized in industrial and commercial settings for motors, blowers, and electrical components. The IEC designation refers to the International Electrotechnical Commission standards that govern many of these products, particularly miniature circuit breakers (MCBs) and supplementary protectors. These devices are designed for DIN rail mounting, a standard method for installing electrical components in control panels and distribution boards. The product family includes both UL489-listed miniature circuit breakers for branch circuit protection and UL1077-recognized supplementary protectors for overcurrent protection in control circuits. Common configurations feature D-curve trip characteristics, which are intended for circuits with high inrush currents, such as those with motors, transformers, or lighting loads. The breakers are available in various current ratings, from 2 A up to 25 A and beyond, with voltage ratings including 240 V AC, 480 V AC, and DC voltages such as 96 V and 125 V. Interrupting capacities range from 7.5 kA to 10 kA at 480 V AC, depending on the model. Terminal types include lug and screw clamp connections, and all units are designed for 2-pole configurations in the examples provided. These devices are used in industrial control panels, machinery, and commercial electrical systems where reliable overcurrent protection is required. 3G Electric supplies the DAYTON IEC line as part of its global distribution of industrial electrical components. The company provides access to datasheets, technical specifications, and logistics support for buyers seeking these products. With a focus on serving plant engineers, maintenance managers, and procurement specialists, 3G Electric ensures that customers can obtain the specific DAYTON IEC breakers and supplementary protectors needed for their applications, regardless of location. The product range includes models such as the NDB2T-63 series for UL489 breakers and the NDB2-63 series for UL1077 supplementary protectors, with manufacturer part numbers like 33V953, 5ZVF0, 33V920, 5ZVE4, and 33V957. These components are typically used in original equipment manufacturing (OEM) machinery, panel building, and retrofit projects where DIN rail mounting and IEC compliance are required. 3G Electric's role is to facilitate the procurement of these items, offering a straightforward purchasing process and support for technical inquiries. The company does not manufacture these products but distributes them as part of its broader catalog of industrial equipment. This includes handling logistics to ensure that customers receive their orders efficiently, whether they are located in Asia, Europe, the Americas, or other regions. For technical buyers, the key considerations when selecting DAYTON IEC devices include the trip curve, current rating, voltage compatibility, interrupting capacity, and terminal type. The D-curve is particularly relevant for loads with high inrush currents, as it allows for brief surges without tripping. The UL489 listing indicates suitability for branch circuit protection, while UL1077 recognition is for supplementary protection, meaning these devices are intended to be used in addition to branch circuit protection, not as a replacement. The voltage ratings cover common industrial AC and DC circuits, and the interrupting capacity must meet or exceed the available fault current at the installation point. 3G Electric provides access to this information through product datasheets and can assist with identifying the correct part numbers for specific requirements. The company's global reach means that customers can source these components from a single supplier, simplifying procurement across multiple sites or projects. In summary, DAYTON IEC products are DIN rail-mounted circuit breakers and supplementary protectors designed for overcurrent protection in industrial and commercial applications. 3G Electric distributes these products worldwide, offering technical data and logistics support to help buyers integrate them into their electrical systems.

Genuine
OEM Parts
Expert
Tech Support
1 Day
Quote Response
Worldwide
Origin
EXW Singapore
Collect or forward from our office
Datasheets on Request
Technical specs & drawings
1-Day Quote Response
Singapore-based team
Show
Page 1 of 1

About DAYTON IEC

DAYTON IEC is a line of electrical protection devices distributed under the Dayton brand, which is associated with OEM, a broad-line supplier of maintenance, repair, and operations (MRO) products. The Dayton name is widely recognized in industrial and commercial settings for motors, blowers, and electrical components. The IEC designation refers to the International Electrotechnical Commission standards that govern many of these products, particularly miniature circuit breakers (MCBs) and supplementary protectors. These devices are designed for DIN rail mounting, a standard method for installing electrical components in control panels and distribution boards. The product family includes both UL489-listed miniature circuit breakers for branch circuit protection and UL1077-recognized supplementary protectors for overcurrent protection in control circuits. Common configurations feature D-curve trip characteristics, which are intended for circuits with high inrush currents, such as those with motors, transformers, or lighting loads. The breakers are available in various current ratings, from 2 A up to 25 A and beyond, with voltage ratings including 240 V AC, 480 V AC, and DC voltages such as 96 V and 125 V. Interrupting capacities range from 7.5 kA to 10 kA at 480 V AC, depending on the model. Terminal types include lug and screw clamp connections, and all units are designed for 2-pole configurations in the examples provided. These devices are used in industrial control panels, machinery, and commercial electrical systems where reliable overcurrent protection is required. 3G Electric supplies the DAYTON IEC line as part of its global distribution of industrial electrical components. The company provides access to datasheets, technical specifications, and logistics support for buyers seeking these products. With a focus on serving plant engineers, maintenance managers, and procurement specialists, 3G Electric ensures that customers can obtain the specific DAYTON IEC breakers and supplementary protectors needed for their applications, regardless of location. The product range includes models such as the NDB2T-63 series for UL489 breakers and the NDB2-63 series for UL1077 supplementary protectors, with manufacturer part numbers like 33V953, 5ZVF0, 33V920, 5ZVE4, and 33V957. These components are typically used in original equipment manufacturing (OEM) machinery, panel building, and retrofit projects where DIN rail mounting and IEC compliance are required. 3G Electric's role is to facilitate the procurement of these items, offering a straightforward purchasing process and support for technical inquiries. The company does not manufacture these products but distributes them as part of its broader catalog of industrial equipment. This includes handling logistics to ensure that customers receive their orders efficiently, whether they are located in Asia, Europe, the Americas, or other regions. For technical buyers, the key considerations when selecting DAYTON IEC devices include the trip curve, current rating, voltage compatibility, interrupting capacity, and terminal type. The D-curve is particularly relevant for loads with high inrush currents, as it allows for brief surges without tripping. The UL489 listing indicates suitability for branch circuit protection, while UL1077 recognition is for supplementary protection, meaning these devices are intended to be used in addition to branch circuit protection, not as a replacement. The voltage ratings cover common industrial AC and DC circuits, and the interrupting capacity must meet or exceed the available fault current at the installation point. 3G Electric provides access to this information through product datasheets and can assist with identifying the correct part numbers for specific requirements. The company's global reach means that customers can source these components from a single supplier, simplifying procurement across multiple sites or projects. In summary, DAYTON IEC products are DIN rail-mounted circuit breakers and supplementary protectors designed for overcurrent protection in industrial and commercial applications. 3G Electric distributes these products worldwide, offering technical data and logistics support to help buyers integrate them into their electrical systems.

Common Applications

  • Industrial control panels — DAYTON IEC UL489 miniature circuit breakers (e.g., 33V953) for branch circuit protection of motor circuits with high inrush currents.

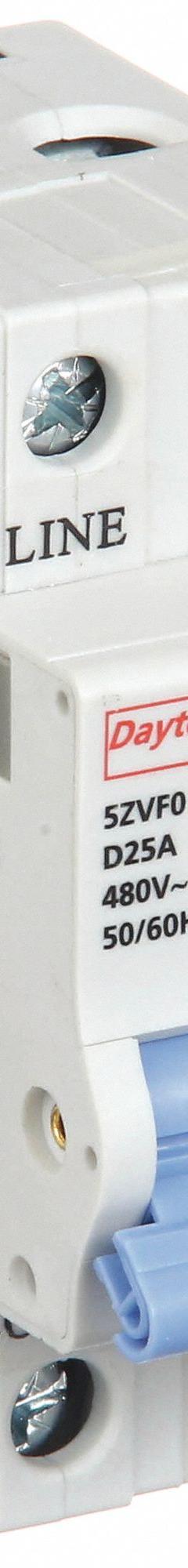

  • Commercial lighting systems — D-curve supplementary protectors (e.g., 5ZVF0) to handle inrush currents from lighting loads while providing overcurrent protection.
  • OEM machinery — 2-pole DIN rail breakers (e.g., 33V920) integrated into equipment for overcurrent protection of control circuits and power distribution.

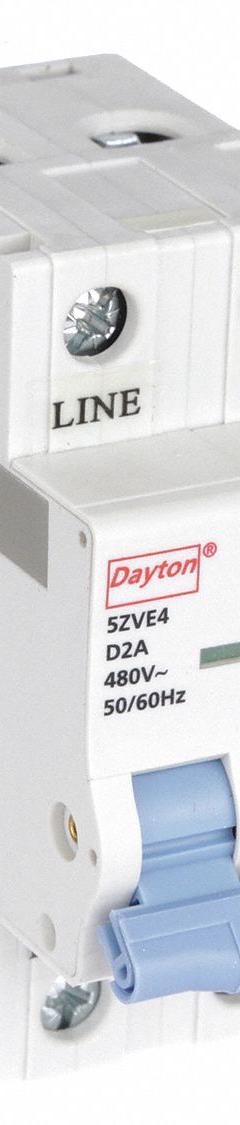

  • Panel building — UL1077 supplementary protectors (e.g., 5ZVE4) used downstream of branch breakers to protect sensitive control components.
  • DC power systems — DAYTON IEC breakers rated for DC (e.g., 33V957) in renewable energy or battery-backed applications requiring 125 V DC protection.
  • Retrofit projects — Replacement of existing DIN rail breakers with DAYTON IEC models (e.g., 33V953) to meet updated overcurrent protection requirements.

Guides & Resources

Frequently asked questions

Common questions about DAYTON IEC from 3G Electric.

What is the difference between DAYTON IEC UL489 miniature circuit breakers and UL1077 supplementary protectors?

UL489-listed miniature circuit breakers, such as the DAYTON IEC 33V953 and 33V920, are intended for branch circuit protection. They can be used as the primary overcurrent protection for a circuit. UL1077-recognized supplementary protectors, like the 5ZVF0 and 5ZVE4, are designed to provide additional protection in control circuits and are not a substitute for branch circuit protection. Supplementary protectors are typically used downstream of a branch circuit breaker to protect specific equipment or components. Both types are DIN rail-mounted and available in D-curve configurations, but their application and listing differ according to UL standards.

What does D-curve mean on a DAYTON IEC circuit breaker?

The D-curve trip characteristic on DAYTON IEC breakers indicates the magnetic trip threshold is set higher than B or C curves. This makes D-curve devices suitable for circuits with high inrush currents, such as those with motors, transformers, or large lighting loads. The thermal trip portion still provides overload protection based on the current rating. For example, the 33V953 is a 10 A D-curve breaker, meaning it will tolerate brief inrush surges without tripping while still protecting against sustained overcurrents. When selecting a D-curve breaker, verify that the circuit's normal inrush current does not exceed the magnetic trip range.

What are the voltage and interrupting capacity ratings for DAYTON IEC 2-pole breakers?

DAYTON IEC 2-pole breakers are available with various voltage and interrupting capacity ratings. For instance, the 33V953 is rated 480 V AC and 96 V DC with a 10 kA interrupting capacity at 480 V AC. The 33V957 is rated 240 V AC and 125 V DC with a 10 kA interrupting capacity at 240 V AC. Supplementary protectors like the 5ZVF0 are rated 480 V AC with a 7.5 kA interrupting capacity. These ratings indicate the maximum voltage the device can handle and the maximum fault current it can safely interrupt. Always ensure the interrupting capacity meets or exceeds the available fault current at the installation point.

What terminal types are available on DAYTON IEC DIN rail breakers?

DAYTON IEC breakers and supplementary protectors are offered with different terminal types. The UL489 miniature circuit breakers, such as the 33V953 and 33V920, feature lug terminals. The UL1077 supplementary protectors, like the 5ZVF0 and 5ZVE4, use screw clamp terminals. Both terminal types are designed for secure wire connections and are compatible with standard wiring practices. Lug terminals typically accept ring or fork connectors, while screw clamp terminals accept bare wire or ferrules. The choice depends on the wiring method and preferences in the panel design.

Can DAYTON IEC breakers be used in DC applications?

Yes, certain DAYTON IEC breakers are rated for DC applications. For example, the 33V953 is rated 96 V DC, and the 33V957 is rated 125 V DC. These DC ratings allow the breakers to be used in DC circuits, such as those found in renewable energy systems, battery storage, or industrial control systems. However, not all models may have DC ratings, so it is important to check the specific product datasheet. When using a breaker in a DC application, ensure that the voltage and current ratings are appropriate for the circuit, and that the interrupting capacity is sufficient for the DC fault current.

How does 3G Electric support the DAYTON IEC product line?

3G Electric distributes DAYTON IEC products globally, providing access to datasheets, technical specifications, and logistics support. Customers can request quotes for specific part numbers, such as 33V953 or 5ZVF0, and receive assistance with identifying the correct components for their applications. 3G Electric handles the procurement process, including shipping to various international destinations, and can support technical inquiries regarding ratings, configurations, and compatibility. The company serves plant engineers, maintenance managers, and procurement specialists who require reliable sourcing of industrial electrical components.
