SPEEDTAPS

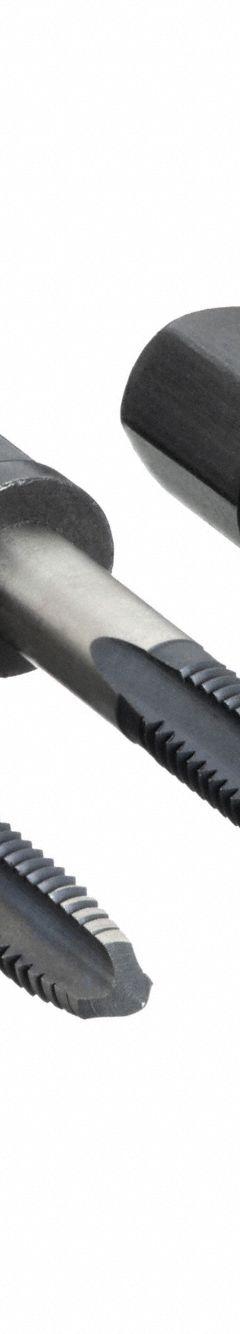

SPEEDTAPS impact taps are specifically designed to be used with impact drivers, which apply rotational torque in a series of pulses rather than continuous rotation. This requires a tap with a stronger shank and geometry to withstand the intermittent forces without breaking. Standard hand taps are typically used with manual tap wrenches or in machines with continuous rotation and may not have the same impact resistance. SPEEDTAPS impact taps feature a straight flute design and are made from high-speed steel, with tolerances like H2 / 2B for UNC and H2 / 6H for metric threads. They are available in sizes such as 1/4"-20, 5/16"-18, 3/8"-16, 1/2"-13, M8x1.25, M10x1.25, and M12x1.75, and are sold in packs of five.

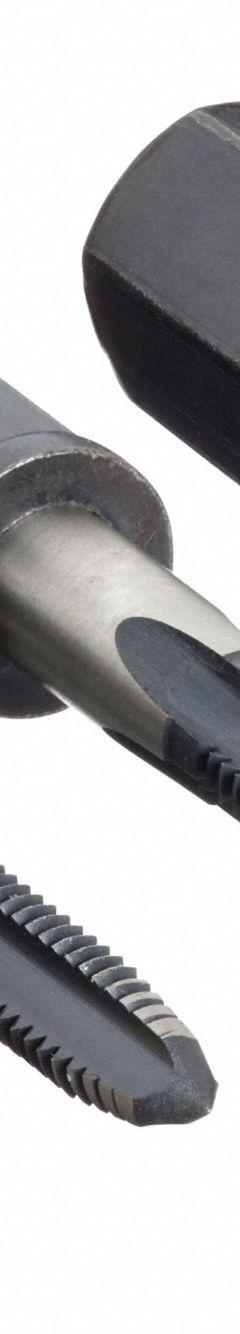

SPEEDTAPS offers impact tap sets that bundle multiple tap sizes. One example is the 4-piece set (MPN SPDTPSSAE4X5), which includes #10-24 UNC, #12-24 UNC, #6-32 UNC, and #8-32 UNC taps. These sets are intended for convenience when multiple thread sizes are needed. Individual taps are also available in packs of five for sizes including 1/4"-20, 5/16"-18, 3/8"-16, 1/2"-13, M8x1.25, M10x1.25, and M12x1.75. The sets and individual packs allow users to select the appropriate configuration for their specific tapping tasks.

SPEEDTAPS impact taps feature a plug chamfer, which is a standard chamfer style that starts the thread easily and is suitable for through holes. For blind holes, a plug chamfer can be used if there is enough clearance at the bottom of the hole to accommodate the chamfer and the tap's lead. However, for blind holes with limited depth, a bottoming chamfer tap may be required. SPEEDTAPS impact taps are primarily designed for general-purpose tapping, and the plug chamfer provides a balance between ease of starting and thread completion. Users should consider the hole depth and thread requirements when selecting the appropriate tap.

SPEEDTAPS impact taps are manufactured from high-speed steel (HSS). This material is commonly used for cutting tools because it offers a combination of hardness, wear resistance, and toughness. The HSS construction allows the taps to maintain a sharp cutting edge and withstand the mechanical stresses of tapping, including the impact forces when used with impact drivers. The taps are not coated, as indicated by the product specifications, but the HSS substrate provides adequate performance for general metalworking and maintenance tasks. Proper use and lubrication can further extend tool life.

In the SPEEDTAPS UNC taps, the H2 / 2B tolerance designation refers to the pitch diameter limits of the tap. H2 is the standard tolerance class for the tap's pitch diameter, and 2B is the corresponding tolerance class for the internal thread being produced. This combination ensures that the tapped hole will have the correct fit for a 2B class internal thread, which is a common tolerance for general-purpose applications. The H2 / 2B tolerance is used in sizes such as 1/4"-20, 5/16"-18, 3/8"-16, and 1/2"-13. For metric taps, the tolerance is H2 / 6H, which is the metric equivalent.

3G Electric supplies SPEEDTAPS impact taps and tap sets as part of its industrial equipment offerings. The company provides access to product datasheets, specifications, and logistics support for customers worldwide. This includes assistance with order fulfillment, technical inquiries, and sourcing for plant engineers, maintenance managers, and procurement specialists. 3G Electric's global distribution network allows customers to obtain SPEEDTAPS products alongside other industrial equipment, helping to streamline procurement. The company does not manufacture SPEEDTAPS products but serves as a distributor, ensuring availability and support for the line.
