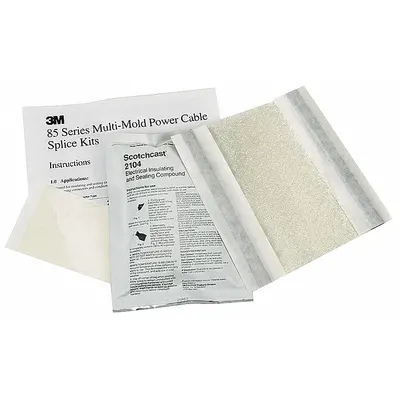

3M 85-16 Molded Resin Splice Kit, 1,000 V Max, 4/0 AWG to 250 kcmil
The 3M Splice Kit (MPN 85-16) is a molded resin splice kit for 1,000 V max volt applications, accommodating a 4/0 AWG to 250 kcmil wire size range. The kit includes a plastic mold and a closed mixing pouch, featuring…
SKU 3G-OTH-21062
Also listed as: 8516 · 85 16
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
The 3M Splice Kit (MPN 85-16) is a molded resin splice kit for 1,000 V max volt applications, accommodating a 4/0 AWG to 250 kcmil wire size range. The kit includes a plastic mold and a closed mixing pouch, featuring a pressure-sensitive adhesive film sealing strip.
Frequently Asked Questions
What is the 3M Splice Kit 85-16 used for?
The 3M Splice Kit 85-16 is used for splicing and insulating electrical cables rated up to 1,000 V max volt. It accommodates wire sizes from 4/0 AWG to 250 kcmil, making it suitable for industrial power distribution, motor connections, and junction box installations where a molded resin splice is required.
What are the specifications of the 3M Splice Kit 85-16?
The 3M Splice Kit 85-16 has a maximum voltage rating of 1,000 V and a wire size range of 4/0 AWG to 250 kcmil. It includes a plastic mold and a closed mixing pouch. A pressure-sensitive adhesive film sealing strip ensures a secure seal. The manufacturer part number is 85-16.
Where to buy the 3M Splice Kit 85-16 worldwide?
You can source the 3M Splice Kit 85-16 worldwide through 3G Electric. As a global industrial equipment distributor, 3G Electric handles full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on this molded resin splice kit.
How to install the 3M Splice Kit 85-16?
To install the 3M Splice Kit 85-16, strip cable insulation to the recommended length, insert conductors into the plastic mold, and mix the resin in the closed mixing pouch. Pour the resin into the mold, then seal with the pressure-sensitive adhesive film strip. Allow curing per 3M's instructions before energizing.
