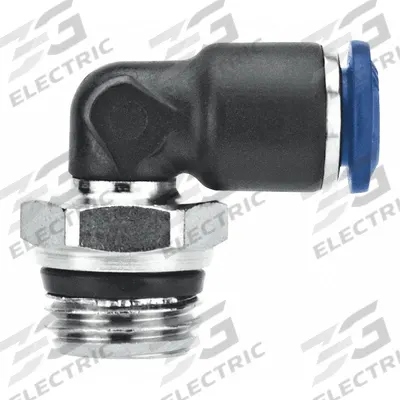

AIGNEP USA Push-Fit Elbow Fitting: 5/32 in OD x 1/8 in Pipe Size - Nylon & Nickel-Plated Brass Tube Fittings
AIGNEP USANylon & Nickel-Plated Brass Tube Fittings

AIGNEP USA Push-Fit Elbow Fitting: 5/32 in OD x 1/8 in Pipe Size

The AIGNEP USA Push-Fit Elbow Fitting (MPN 85110-53-02) is a nylon and nickel-plated brass tube fitting with a Push-to-Connect x Universal Thread configuration. It connects 5/32 in OD tubing to a 1/8-27 threaded pipe…

SKU 3G-OTH-492341

Brand
AIGNEP USA
Item
Push-Fit Elbow Fitting: 5/32 in OD x 1/8 in Pipe Size
Category
Nylon & Nickel-Plated Brass Tube Fittings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

AIGNEP USA
Manufacturer Part Number
85110-53-02
Type
Push-to-Connect x Universal Thread
Thread Size A
1/8-27
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

AIGNEP USA Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The AIGNEP USA Push-Fit Elbow Fitting (MPN 85110-53-02) is a nylon and nickel-plated brass tube fitting with a Push-to-Connect x Universal Thread configuration. It connects 5/32 in OD tubing to a 1/8-27 threaded pipe port. This fitting is part of our broader industrial solutions across 14 departments, with specialist depth in pneumatics and controls.

Frequently Asked Questions

What is the AIGNEP USA Push-Fit Elbow Fitting used for?

The AIGNEP USA Push-Fit Elbow Fitting (MPN 85110-53-02) connects 5/32 in OD nylon or polyurethane tubing to a 1/8-27 threaded port in pneumatic systems. It is used in automation, packaging, and material handling applications where a compact 90° turn is needed.

What are the specifications of the AIGNEP USA 85110-53-02?

This fitting has a Push-to-Connect x Universal Thread configuration, with a 5/32 in OD tube size and a 1/8-27 thread size. It is made of nylon and nickel-plated brass. The manufacturer part number is 85110-53-02, and it is produced by AIGNEP USA.

Where to buy AIGNEP USA push-fit fittings worldwide?

3G Electric supplies AIGNEP USA push-fit fittings like the 85110-53-02 to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this pneumatic component.

How to install an AIGNEP USA push-to-connect elbow fitting?

To install, cut tubing square and push it fully into the fitting until it stops. For the threaded end, apply PTFE tape to the 1/8-27 male thread and tighten into the port. Ensure the tubing is fully seated and the collet is not damaged before pressurizing the system.

Used in

Common applications for AIGNEP USA
Pneumatic actuator speed control — AIGNEP USA elbow-style speed control valves (e.g., 88973-04-04) regulate cylinder extension and retraction rates.
Compressed air system backflow prevention — AIGNEP USA check valves (e.g., 82663-06) prevent reverse flow in air distribution lines.
Quick exhaust for cylinder retraction — AIGNEP USA quick exhaust valves (e.g., 82650-06) accelerate exhaust air from pneumatic actuators.
Flow regulation in control panels — AIGNEP USA universal flow control valves (e.g., 88953-06-04) adjust air flow in manifold or panel-mounted circuits.
Pneumatic tool supply lines — AIGNEP USA check valves maintain pressure in tool feed lines and prevent backflow during tool changes.
Automated assembly line pneumatic circuits — AIGNEP USA speed control valves (e.g., 88977-04-04) fine-tune motion in pick-and-place or clamping operations.
