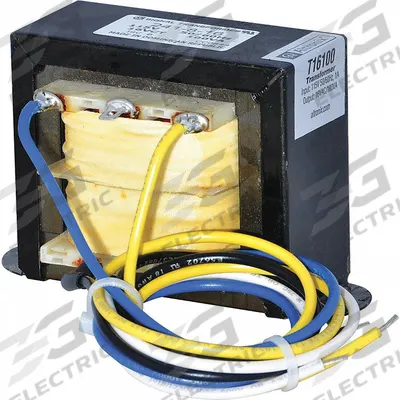

ALTRONIX Class 2 Transformer: 100 VA Power Rating, 115V AC, 16V AC, Foot, Wire Lead - Open Class 2 Transformers
ALTRONIXOpen Class 2 Transformers

ALTRONIX Class 2 Transformer: 100 VA Power Rating, 115V AC, 16V AC, Foot, Wire Lead

The ALTRONIX Class 2 Transformer (MPN T16100) is an open-type transformer with a 100 VA power rating. It features a foot mounting style, a 115V AC input, and a 16V AC output, with wire lead connections on both the…

SKU 3G-OTH-48241

Brand
ALTRONIX
Item
Class 2 Transformer: 100 VA Power Rating, 115V AC, 16V AC, Foot, Wire Lead
Category
Open Class 2 Transformers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

ALTRONIX
Manufacturer Part Number
T16100
Type
Foot, Wire Lead, Wire Lead
AC
115V
Mounting
Foot
Input Voltage
115V AC
Output Voltage
16V AC
Connection - Primary
Wire Lead
Connection - Secondary
Wire Lead
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

ALTRONIX Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The ALTRONIX Class 2 Transformer (MPN T16100) is an open-type transformer with a 100 VA power rating. It features a foot mounting style, a 115V AC input, and a 16V AC output, with wire lead connections on both the primary and secondary sides.

Frequently Asked Questions

What is the ALTRONIX Class 2 Transformer T16100 used for?

The ALTRONIX Class 2 Transformer T16100 is used to step down 115V AC input to 16V AC output for low-voltage power applications. It is commonly employed in security, access control, and fire alarm systems where a reliable 100 VA power supply is needed.

What are the specifications of the ALTRONIX T16100 transformer?

The ALTRONIX T16100 is an open Class 2 transformer with a 100 VA power rating. It has a 115V AC input and a 16V AC output. Mounting is foot style, and both primary and secondary connections are wire lead. The manufacturer part number is T16100.

Where to buy the ALTRONIX T16100 transformer worldwide?

You can source the ALTRONIX T16100 transformer through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time.

How to install the ALTRONIX T16100 transformer?

Mount the ALTRONIX T16100 securely using its foot mounting bracket. Connect the primary wire leads to a 115V AC supply and the secondary wire leads to your 16V AC load. Ensure the transformer is installed in a dry, ventilated area and follow local electrical codes.
