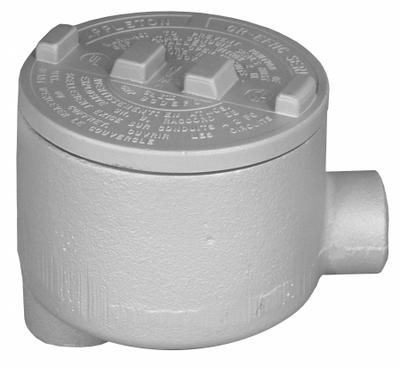

APPLETON ELECTRIC Conduit Outlet Body: Iron, GR, 1 in Trade Size, LB Body - LB Round Body - 90° Elbow Type
APPLETON ELECTRICLB Round Body - 90° Elbow Type

APPLETON ELECTRIC Conduit Outlet Body: Iron, GR, 1 in Trade Size, LB Body

The APPLETON ELECTRIC GRLB100 is an iron LB round-body conduit outlet body with a 1-inch trade size and 18-cubic-inch body capacity. It features a triple-coat epoxy finish, threaded female hubs, and includes an…

SKU 3G-OTH-05252

Brand
APPLETON ELECTRIC
Item
Conduit Outlet Body: Iron, GR, 1 in Trade Size, LB Body
Category
LB Round Body - 90° Elbow Type
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPLETON ELECTRIC
Manufacturer Part Number
GRLB100
Series
For Standard Body
Material
Iron
Finish
Triple Coat Epoxy Coating
Includes
O-ring
Back Type
Round
Body Type
Conduit Outlet Body
Hub Style
Threaded
Standards
UL Listed for Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III
Body Style
LB
For Use With
Threaded IMC
Thread Gender
Female
Cover Included
Yes
Connection Type
Threaded
Hazardous Location
Yes
Compatible Conduit Trade Size
1 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPLETON ELECTRIC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The APPLETON ELECTRIC GRLB100 is an iron LB round-body conduit outlet body with a 1-inch trade size and 18-cubic-inch body capacity. It features a triple-coat epoxy finish, threaded female hubs, and includes an O-ring and cover. This hazardous-location-rated unit is UL Listed for Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III, and is designed for use with threaded IMC.
