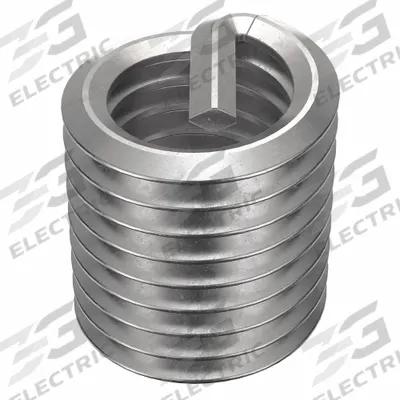

APPROVED VENDOR Helical Insert: Tanged Tang Style, Free-Running, M10-1.50 Thread Size, Plain - Free-Running Tanged Helical Inserts
APPROVED VENDORFree-Running Tanged Helical Inserts

APPROVED VENDOR Helical Insert: Tanged Tang Style, Free-Running, M10-1.50 Thread Size, Plain

The APPROVED VENDOR Helical Insert is a free-running, tanged tang style insert with M10-1.50 thread size, right-hand, coarse metric threads, and plain finish. Made from 18-8 metal with a tensile strength of 200,000…

SKU 3G-OTH-599052

Brand
APPROVED VENDOR
Item
Helical Insert: Tanged Tang Style, Free-Running, M10-1.50 Thread Size, Plain
Category
Free-Running Tanged Helical Inserts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPROVED VENDOR
Manufacturer Part Number
3520-10.00X1.5D
Type
Free-Running, M10-1.50 Thread Size, Plain, 10 PK
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPROVED VENDOR Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The APPROVED VENDOR Helical Insert is a free-running, tanged tang style insert with M10-1.50 thread size, right-hand, coarse metric threads, and plain finish. Made from 18-8 metal with a tensile strength of 200,000 psi and an installed length of 0.409 in, this 10-pack provides a reliable thread repair solution for industrial applications.

Frequently Asked Questions

What is an APPROVED VENDOR helical insert used for?

An APPROVED VENDOR helical insert repairs or reinforces tapped threads in metal components. It is ideal for industrial applications where stripped or worn threads need a durable, free-running solution. The M10-1.50 size suits metric fasteners, and the 18-8 material provides corrosion resistance.

What are the specifications of the APPROVED VENDOR M10-1.50 helical insert?

This free-running, tanged tang insert has M10-1.50 right-hand coarse metric threads, a plain finish, and is made from 18-8 metal. It offers a tensile strength of 200,000 psi and an installed length of 0.409 in. The pack contains 10 pieces.

Where to buy APPROVED VENDOR helical inserts worldwide?

3G Electric supplies APPROVED VENDOR helical inserts to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. Contact us to order the M10-1.50 10-pack (MPN 3520-10.00X1.5D) for your thread repair needs.

How to install a tanged tang style helical insert?

To install a tanged tang helical insert, drill out the damaged thread to the specified tap drill size, tap the hole with the correct STI tap, then use a tang-style installation tool to wind the insert into place. After installation, break off the tang with a punch. Always follow the manufacturer's instructions.
