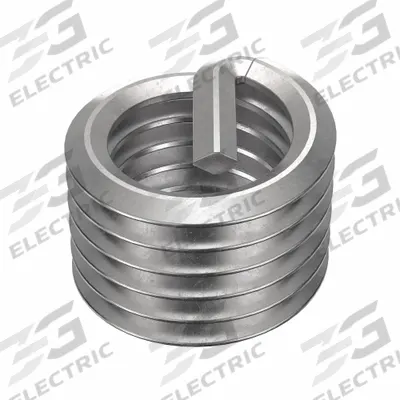

APPROVED VENDOR Helical Insert: Tanged Tang Style, Screw-Locking, M14-2.00 Thread Size - Screw-Locking Tanged Helical Inserts
APPROVED VENDORScrew-Locking Tanged Helical Inserts

APPROVED VENDOR Helical Insert: Tanged Tang Style, Screw-Locking, M14-2.00 Thread Size

The APPROVED VENDOR Helical Insert is a screw-locking, tanged tang style insert with M14-2.00 thread size, plain finish, and 18-8 material grade. It features a tensile strength of 200,000 psi, right-hand thread…

SKU 3G-OTH-528981

Brand
APPROVED VENDOR
Item
Helical Insert: Tanged Tang Style, Screw-Locking, M14-2.00 Thread Size
Category
Screw-Locking Tanged Helical Inserts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPROVED VENDOR
Manufacturer Part Number
3520-14.00X1.0DSL
Type
Screw-Locking, M14-2.00 Thread Size, Plain, 5 PK
Tensile Strength
200,000 psi
Finish Type
Plain
Thread Type
Coarse
STI Tap Size
M14-2.00
Drill Bit Size
0.571 in
Thread Direction
Right Hand
Compatible Material
Metal
Material Grade/Class
18-8
System of Measurement
Metric
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPROVED VENDOR Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The APPROVED VENDOR Helical Insert is a screw-locking, tanged tang style insert with M14-2.00 thread size, plain finish, and 18-8 material grade. It features a tensile strength of 200,000 psi, right-hand thread direction, and is compatible with metal. Supplied in a 5-pack, this metric insert requires an STI tap size of M14-2.00 and a drill bit size of 0.571 in.

Frequently Asked Questions

What is an APPROVED VENDOR helical insert used for?

An APPROVED VENDOR helical insert repairs or strengthens threads in metal. The M14-2.00 screw-locking tanged tang style provides vibration resistance, making it suitable for industrial machinery, automotive, and aerospace applications where thread integrity is critical.

What are the specifications of the APPROVED VENDOR M14-2.00 helical insert?

This helical insert has an M14-2.00 thread size, 18-8 material grade, and a tensile strength of 200,000 psi. It is a screw-locking tanged tang style with plain finish, right-hand thread direction, and requires an STI tap size of M14-2.00 and a drill bit size of 0.571 in. Supplied in a 5-pack.

Where to buy APPROVED VENDOR helical inserts worldwide?

3G Electric supplies APPROVED VENDOR helical inserts worldwide. As a global industrial solutions provider, we handle full logistics and customs clearance to deliver the M14-2.00 screw-locking tanged tang style insert to your facility. Contact us for availability and lead time.

How to install an APPROVED VENDOR tanged helical insert?

To install, drill a hole to 0.571 in, tap with an M14-2.00 STI tap, then insert the helical insert using a tang drive tool. After installation, break off the tang. Ensure the hole is clean and lubricated for proper thread engagement. Follow standard thread repair practices for metal substrates.
