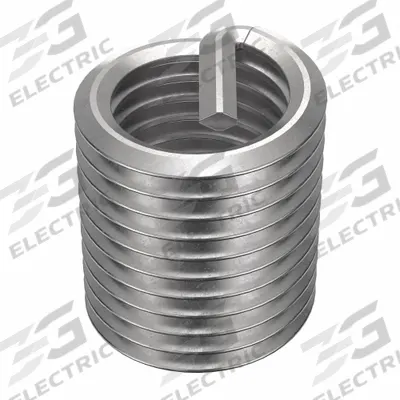

APPROVED VENDOR Helical Insert: Tanged Tang Style, Screw-Locking, M16-2.00 Thread Size - Screw-Locking Tanged Helical Inserts
APPROVED VENDORScrew-Locking Tanged Helical Inserts

APPROVED VENDOR Helical Insert: Tanged Tang Style, Screw-Locking, M16-2.00 Thread Size

The APPROVED VENDOR Helical Insert is a screw-locking, tanged tang style insert with M16-2.00 thread size, plain finish, and 18-8 material grade. It features a coarse right-hand thread, requires a 14 mm drill bit and…

SKU 3G-OTH-529030

Brand
APPROVED VENDOR
Item
Helical Insert: Tanged Tang Style, Screw-Locking, M16-2.00 Thread Size
Category
Screw-Locking Tanged Helical Inserts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPROVED VENDOR
Manufacturer Part Number
3520-16.00X1.5DSL
Type
Screw-Locking, M16-2.00 Thread Size, Plain, Plain
Tensile Strength
200,000 psi
Finish Type
Plain
Thread Type
Coarse
STI Tap Size
M16-2.00
Drill Bit Size
14 mm
Thread Direction
Right Hand
Compatible Material
Metal
Material Grade/Class
18-8
System of Measurement
Metric
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPROVED VENDOR Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The APPROVED VENDOR Helical Insert is a screw-locking, tanged tang style insert with M16-2.00 thread size, plain finish, and 18-8 material grade. It features a coarse right-hand thread, requires a 14 mm drill bit and M16-2.00 STI tap, and offers 200,000 psi tensile strength for metal applications.

Frequently Asked Questions

What is an APPROVED VENDOR M16-2.00 helical insert used for?

This screw-locking tanged helical insert repairs or strengthens internal threads in metal components. It is commonly used in automotive, industrial machinery, and aerospace applications where a high-strength, 200,000 psi tensile thread is required. 3G Electric supplies this insert for worldwide delivery.

What are the specifications of the APPROVED VENDOR helical insert 3520-16.00X1.5DSL?

This insert has an M16-2.00 metric coarse thread, 18-8 stainless steel material, plain finish, and right-hand thread direction. It requires a 14 mm drill bit and M16-2.00 STI tap. Tensile strength is 200,000 psi. 3G Electric sources this APPROVED VENDOR part for global customers.

Where to buy APPROVED VENDOR helical inserts in worldwide?

3G Electric supplies APPROVED VENDOR helical inserts to customers worldwide. We handle full logistics, customs clearance, and delivery to your facility. Contact us for availability and lead time on the M16-2.00 screw-locking insert (MPN 3520-16.00X1.5DSL).

How to install an APPROVED VENDOR M16-2.00 helical insert?

Drill a 14 mm hole, tap it with an M16-2.00 STI tap, then wind the insert into the tapped hole using a tang installation tool. After installation, break off the tang. 3G Electric provides this insert for metal repair applications and can advise on tooling requirements.
