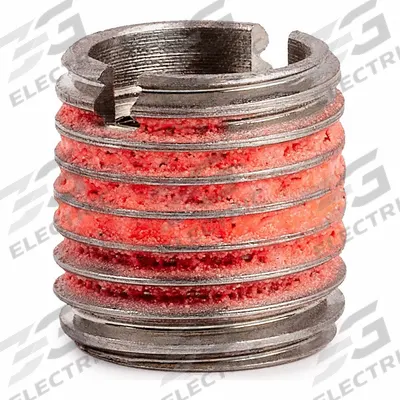

APPROVED VENDOR Self Locking Thread Insert: Thin Wall, 7/16"-20 Int Thrd Sz, Stainless Steel - Thin Wall Self-Locking Inserts
APPROVED VENDORThin Wall Self-Locking Inserts

APPROVED VENDOR Self Locking Thread Insert: Thin Wall, 7/16"-20 Int Thrd Sz, Stainless Steel

The APPROVED VENDOR Self Locking Thread Insert is a thin-wall, stainless steel insert (5 PK) with a 7/16"-20 fine internal thread and 2B fit. It requires a 33/64 drill bit and a 9/16"-18 tap, with a 2A external…

SKU 3G-OTH-528405

Brand
APPROVED VENDOR
Item
Self Locking Thread Insert: Thin Wall, 7/16"-20 Int Thrd Sz, Stainless Steel
Category
Thin Wall Self-Locking Inserts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPROVED VENDOR
Manufacturer Part Number
313-720-PK5
Type
Stainless Steel, 5 PK
Wall Type
Thin Wall
Int Thrd Sz
7/16"-20
Thread Type
Fine
Drill Bit Size
33/64
Compatible Tap Size
9/16"-18
External Thread Fit
2A
Internal Thread Fit
2B
System of Measurement
Inch
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPROVED VENDOR Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The APPROVED VENDOR Self Locking Thread Insert is a thin-wall, stainless steel insert (5 PK) with a 7/16"-20 fine internal thread and 2B fit. It requires a 33/64 drill bit and a 9/16"-18 tap, with a 2A external thread fit. This inch-system insert provides a reliable threaded repair or reinforcement solution for industrial applications.

Frequently Asked Questions

What is an APPROVED VENDOR Self Locking Thread Insert used for?

This thin-wall stainless steel insert repairs or reinforces damaged internal threads in industrial equipment. It is commonly used in machining, automotive, and general maintenance applications where a reliable 7/16"-20 fine thread is needed. 3G Electric supplies this insert as part of its broad industrial parts offering.

What are the specifications of the APPROVED VENDOR 313-720-PK5 thread insert?

This inch-system insert has a 7/16"-20 fine internal thread with a 2B fit and a 2A external thread fit. It requires a 33/64 drill bit and a 9/16"-18 tap. The wall type is thin wall, and the material is stainless steel. It comes in a 5-pack.

Where to buy APPROVED VENDOR thread inserts worldwide?

3G Electric supplies the APPROVED VENDOR Self Locking Thread Insert 313-720-PK5 to customers worldwide. We handle full logistics, customs clearance, and delivery for global orders. Contact us for pricing and lead time on this thin-wall stainless steel insert.

How to install a thin wall self-locking thread insert?

Drill out the damaged thread using a 33/64 drill bit, then tap the hole with a 9/16"-18 tap. Clean the hole thoroughly. Use a standard installation tool to drive the insert until it is slightly below the surface. The self-locking feature holds the insert in place without additional adhesives.
