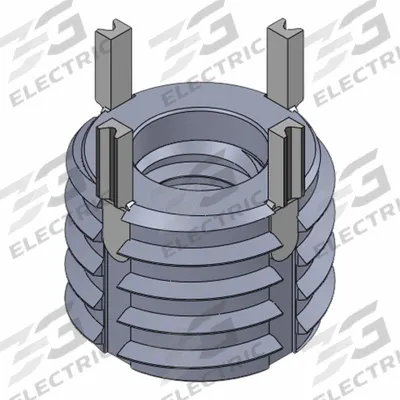

APPROVED VENDOR Key Locking Insert: Heavy Wall, 4 Keys, M14-2.00 Int Thrd Sz, M20-1.50 Ext Thrd Sz - Mil. Spec. Key-Locking Inserts
APPROVED VENDORMil. Spec. Key-Locking Inserts

APPROVED VENDOR Key Locking Insert: Heavy Wall, 4 Keys, M14-2.00 Int Thrd Sz, M20-1.50 Ext Thrd Sz

The APPROVED VENDOR Key Locking Insert is a heavy-wall, mil. spec. insert with 4 keys, M14-2.00 internal thread size and M20-1.50 external thread size, plain finish, in a 10-pack. It meets Fed Std. H28/21 and MJ Form…

SKU 3G-OTH-531709

Brand
APPROVED VENDOR
Item
Key Locking Insert: Heavy Wall, 4 Keys, M14-2.00 Int Thrd Sz, M20-1.50 Ext Thrd Sz
Category
Mil. Spec. Key-Locking Inserts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPROVED VENDOR
Manufacturer Part Number
217-076370
Type
M14-2.00 Int Thrd Sz, M20-1.50 Ext Thrd Sz, Plain, 10 PK
Keys
4
Wall Type
Heavy Wall
Finish Type
Plain
Thread Type
Coarse
Drill Bit Size
18.70 mm
Industry Standards
Fed Std. H28/21, MJ Form
Compatible Tap Size
M20-1.50
External Thread Fit
2A
Internal Thread Fit
3B
Material Grade/Class
18-8
System of Measurement
Metric
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPROVED VENDOR Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The APPROVED VENDOR Key Locking Insert is a heavy-wall, mil. spec. insert with 4 keys, M14-2.00 internal thread size and M20-1.50 external thread size, plain finish, in a 10-pack. It meets Fed Std. H28/21 and MJ Form standards, is made from 18-8 material, and requires an 18.70 mm drill bit with M20-1.50 compatible tap size, featuring 2A external and 3B internal thread fits.

Frequently Asked Questions

What is an APPROVED VENDOR key locking insert used for?

This heavy-wall key locking insert is used to repair or reinforce threaded holes in metal assemblies, particularly in aerospace and defense applications. It meets Fed Std. H28/21 and MJ Form standards, providing a durable 18-8 stainless steel thread repair solution for M14-2.00 internal threads.

What are the specifications of the APPROVED VENDOR key locking insert?

This insert has M14-2.00 internal thread size and M20-1.50 external thread size, with 4 keys and a plain finish. It requires an 18.70 mm drill bit and M20-1.50 tap, with 2A external and 3B internal thread fits. Made from 18-8 stainless steel, it meets Fed Std. H28/21 and MJ Form standards.

Where to buy APPROVED VENDOR key locking inserts worldwide?

3G Electric supplies and delivers APPROVED VENDOR key locking inserts worldwide. As a global industrial solutions provider, we handle full logistics and customs clearance to ensure your order arrives at your facility. Contact us for availability and lead time on this 10-pack of heavy-wall inserts.

How to install an APPROVED VENDOR key locking insert?

Drill a hole to 18.70 mm, tap it with an M20-1.50 tap, then thread the insert into the tapped hole using a compatible installation tool. The 4 keys lock the insert into place, preventing rotation. Use a tang break-off tool to remove the drive tang after installation. Follow standard thread repair practices.
