ASHCROFT Pressure Switch: Piston Actuator, 1NO/1NC, 20 psi – 200 psi - Diaphragm & Piston Miniature Pressure Switches
ASHCROFTDiaphragm & Piston Miniature Pressure Switches

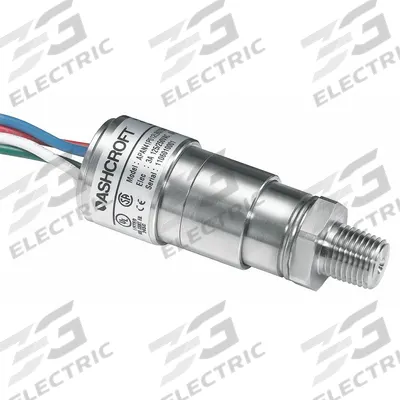

ASHCROFT Pressure Switch: Piston Actuator, 1NO/1NC, 20 psi – 200 psi

The ASHCROFT APAN41H012LB02200#-NSR is a diaphragm and piston miniature pressure switch with a piston actuator, featuring a 1NO/1NC contact configuration and a pressure range of 20 psi to 200 psi. It includes a 1/4"…

SKU 3G-OTH-36035

Brand
ASHCROFT
Item
Pressure Switch: Piston Actuator, 1NO/1NC, 20 psi – 200 psi
Category
Diaphragm & Piston Miniature Pressure Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

ASHCROFT
Manufacturer Part Number
APAN41H012LB02200#-NSR
Pressure Connection Type
1/4" MNPT
Electrical Connection Type
3-18 AWG PVC Insulated 12" Wire Leads
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

ASHCROFT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The ASHCROFT APAN41H012LB02200#-NSR is a diaphragm and piston miniature pressure switch with a piston actuator, featuring a 1NO/1NC contact configuration and a pressure range of 20 psi to 200 psi. It includes a 1/4" MNPT pressure connection and 3-18 AWG PVC insulated 12" wire leads for electrical connection.

Frequently Asked Questions

What is the ASHCROFT APAN41H012LB02200#-NSR pressure switch used for?

The ASHCROFT APAN41H012LB02200#-NSR is a diaphragm and piston miniature pressure switch used to monitor or control pressure in industrial hydraulic and pneumatic systems. It is suitable for applications requiring a 20 psi to 200 psi range with a 1NO/1NC contact configuration, such as compressors, pumps, and process equipment.

What are the specifications of the ASHCROFT APAN41H012LB02200#-NSR?

The ASHCROFT APAN41H012LB02200#-NSR is a piston-actuated pressure switch with a pressure range of 20 psi to 200 psi. It has a 1/4" MNPT pressure connection and 3-18 AWG PVC insulated 12" wire leads for electrical connection. The contact configuration is 1NO/1NC, and the brand is ASHCROFT.

Where to buy the ASHCROFT APAN41H012LB02200#-NSR pressure switch worldwide?

You can source the ASHCROFT APAN41H012LB02200#-NSR pressure switch through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this ASHCROFT miniature pressure switch.

How to install the ASHCROFT APAN41H012LB02200#-NSR pressure switch?

Install the ASHCROFT APAN41H012LB02200#-NSR by connecting the 1/4" MNPT pressure port to the system using compatible fittings and sealant. Wire the 3-18 AWG leads to your control circuit per the 1NO/1NC contact diagram. Avoid overtightening and verify the set point range of 20 psi to 200 psi before pressurizing.
