ASHCROFT Pressure Transmitter: 0 psi to 1,000 psi, 4 to 20mA DC, Cable & Wire Leads - Pressure Transmitters with Cable & Wire Leads
ASHCROFTPressure Transmitters with Cable & Wire Leads

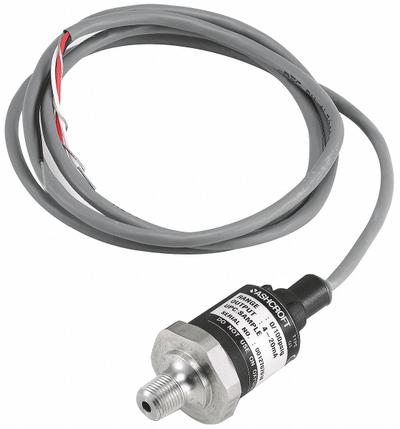

ASHCROFT Pressure Transmitter: 0 psi to 1,000 psi, 4 to 20mA DC, Cable & Wire Leads

The ASHCROFT G2 Pressure Transmitter (0 psi to 1,000 psi) is a pressure transmitter with cable and wire leads, featuring a 4 to 20mA DC output and ±0.5% accuracy. It has an IP67 and NEMA 4X rating, a nylon housing…

SKU 3G-OTH-176491

Brand
ASHCROFT
Item
Pressure Transmitter: 0 psi to 1,000 psi, 4 to 20mA DC, Cable & Wire Leads
Category
Pressure Transmitters with Cable & Wire Leads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

ASHCROFT
Manufacturer Part Number
G17M0142F21000#
Series
G2
Type
Cable & Wire Leads
DC
4 to 20mA
Output
4 to 20mA DC
Accuracy
±0.5%
Male NPT
1/8 in
IP Rating
IP67
NEMA Rating
4X
Overpressure
2x Range
Burst Pressure
5x Range
Housing Material
Nylon
Process Connection Type
NPT
Process Connection Gender
Male
Calibration Certificate Included
No NIST-Traceable Calibration Certificate Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

ASHCROFT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The ASHCROFT G2 Pressure Transmitter (0 psi to 1,000 psi) is a pressure transmitter with cable and wire leads, featuring a 4 to 20mA DC output and ±0.5% accuracy. It has an IP67 and NEMA 4X rating, a nylon housing, and a 1/8 in male NPT process connection. Overpressure is 2x range and burst pressure is 5x range. No NIST-traceable calibration certificate is included.
