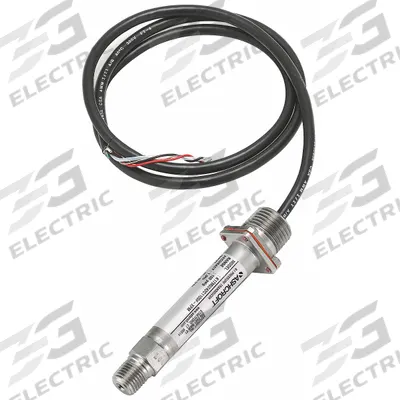

ASHCROFT Pressure Transmitter: 0 psi to 5,000 psi, 4 to 20mA DC, Cable & Wire Leads - Intrinsically Safe with Conduit Shielded Cable
ASHCROFTIntrinsically Safe with Conduit Shielded Cable

ASHCROFT Pressure Transmitter: 0 psi to 5,000 psi, 4 to 20mA DC, Cable & Wire Leads

The ASHCROFT K1 Series Intrinsically Safe-Rated Transmitter (SKU 5DLV8) measures gauge pressure from 0 psi to 5,000 psi with a 4 to 20mA DC output and ±1% of Full Scale accuracy. It features a stainless steel…

SKU 3G-OTH-176214

Brand
ASHCROFT
Item
Pressure Transmitter: 0 psi to 5,000 psi, 4 to 20mA DC, Cable & Wire Leads
Category
Intrinsically Safe with Conduit Shielded Cable
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

ASHCROFT
Manufacturer Part Number
K17MO242C15000#XFM
Series
K1
Type
Cable & Wire Leads, IP67 /4X, Gauge
DC
4 to 20mA
Output
4 to 20mA DC
Accuracy
±1% of Full Scale
IP Rating
IP67
NEMA Rating
4X
Overpressure
1.5x Range
Product Type
Intrinsically Safe-Rated Transmitter
Burst Pressure
3x Range
Housing Material
Stainless Steel
Intrinsically Safe
Intrinsically Safe
Pressure Type Measured
Gauge
Process Connection Type
NPT
NIST Traceable Certificate
No NIST-Traceable Calibration Certificate Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

ASHCROFT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The ASHCROFT K1 Series Intrinsically Safe-Rated Transmitter (SKU 5DLV8) measures gauge pressure from 0 psi to 5,000 psi with a 4 to 20mA DC output and ±1% of Full Scale accuracy. It features a stainless steel housing, IP67 and NEMA 4X ratings, an NPT process connection, and a conduit shielded cable. Overpressure capability is 1.5x range, with burst pressure at 3x range.

Frequently Asked Questions

What is the ASHCROFT K1 pressure transmitter used for?

The ASHCROFT K1 series intrinsically safe transmitter measures gauge pressure from 0 psi to 5,000 psi in hazardous industrial environments. It is commonly used in oil and gas, chemical processing, and water treatment applications where reliable pressure monitoring and safety are critical.

What are the specifications of the ASHCROFT K1 pressure transmitter?

The ASHCROFT K1 transmitter (MPN K17MO242C15000#XFM) has a 4 to 20mA DC output, ±1% of Full Scale accuracy, stainless steel housing, IP67 and NEMA 4X ratings, NPT process connection, and overpressure capability of 1.5x range with burst pressure at 3x range.

Where to buy the ASHCROFT K1 pressure transmitter worldwide?

3G Electric supplies the ASHCROFT K1 pressure transmitter worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on this intrinsically safe transmitter.

How to install the ASHCROFT K1 pressure transmitter?

Install the ASHCROFT K1 transmitter by connecting the NPT process connection to the system, ensuring proper sealing. Use the conduit shielded cable for wiring the 4 to 20mA DC output. Follow standard intrinsically safe installation practices and verify the IP67/NEMA 4X seal integrity.
