ASHCROFT Pressure Transmitter: 0 psi to 300 psi, 1 to 5V DC, Cable & Wire Leads - Pressure Transmitters with Cable & Wire Leads
ASHCROFTPressure Transmitters with Cable & Wire Leads

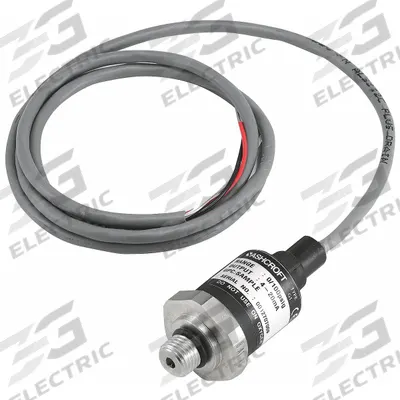

ASHCROFT Pressure Transmitter: 0 psi to 300 psi, 1 to 5V DC, Cable & Wire Leads

The ASHCROFT G2 Series Pressure Transmitter (0 psi to 300 psi) is a pressure transmitter with cable and wire leads, offering a 1 to 5V DC output. It features an accuracy of ±0.5%, an IP67 and NEMA 4X rating, a nylon…

SKU 3G-OTH-176437

Brand
ASHCROFT
Item
Pressure Transmitter: 0 psi to 300 psi, 1 to 5V DC, Cable & Wire Leads
Category
Pressure Transmitters with Cable & Wire Leads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

ASHCROFT
Manufacturer Part Number
G17MEK15F2300#
Series
G2
Type
Cable & Wire Leads, IP67 /4X
DC
1 to 5V
Output
1 to 5V DC
Accuracy
±0.5%
Male SAE
7/16 in
IP Rating
IP67
NEMA Rating
4X
Overpressure
2x Range
Burst Pressure
10x Range
Housing Material
Nylon
Process Connection Type
SAE
Process Connection Gender
Male
Calibration Certificate Included
No NIST-Traceable Calibration Certificate Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

ASHCROFT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The ASHCROFT G2 Series Pressure Transmitter (0 psi to 300 psi) is a pressure transmitter with cable and wire leads, offering a 1 to 5V DC output. It features an accuracy of ±0.5%, an IP67 and NEMA 4X rating, a nylon housing, and a 7/16 in male SAE process connection. Overpressure is 2x range, and burst pressure is 10x range. No NIST-traceable calibration certificate is included.

Frequently Asked Questions

What is the ASHCROFT G2 pressure transmitter used for?

The ASHCROFT G2 pressure transmitter is used for industrial pressure monitoring in hydraulic systems, compressors, and pumps. Its 0 psi to 300 psi range, 1 to 5V DC output, and IP67/NEMA 4X rating suit harsh environments. 3G Electric supplies this transmitter for global applications.

What are the specifications of the ASHCROFT G17MEK15F2300#?

The ASHCROFT G17MEK15F2300# is a G2 Series pressure transmitter with ±0.5% accuracy, 1 to 5V DC output, IP67 and NEMA 4X ratings, nylon housing, and a 7/16 in male SAE connection. Overpressure is 2x range; burst pressure is 10x range. No NIST-traceable calibration certificate is included.

Where to buy the ASHCROFT G2 pressure transmitter worldwide?

3G Electric supplies the ASHCROFT G2 pressure transmitter worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time. We source and deliver this transmitter to any country.

How to install the ASHCROFT G2 pressure transmitter?

Install the ASHCROFT G2 pressure transmitter by connecting the 7/16 in male SAE fitting to a compatible port. Use the cable and wire leads for 1 to 5V DC output. Ensure the housing is sealed to maintain IP67/NEMA 4X protection. Avoid overpressure beyond 2x range. Follow standard wiring practices for DC transmitters.

Used in

Common applications for ASHCROFT
Process control in chemical plants — ASHCROFT G2 series pressure transmitters with 4-20 mA output
Sanitary monitoring in food processing — ASHCROFT sanitary pressure transmitters with stainless steel fittings
Temperature measurement in oil and gas — ASHCROFT flanged thermowells rated to 1,000°F
Hydraulic system pressure monitoring — ASHCROFT G2 series transmitters with 1-5 V DC output
Hazardous location pressure sensing — ASHCROFT A2X explosion-proof transmitters with conduit connection
Steam system temperature protection — ASHCROFT threaded thermowells rated to 7,000 psi

ASHCROFT Products

3G Electric supplies ASHCROFT pressure transmitters with cable & wire leads. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
