ASHCROFT Gauge/seal assembly: 0 psi to 200 psi - Acid Leak Detection Gauges
ASHCROFTAcid Leak Detection Gauges

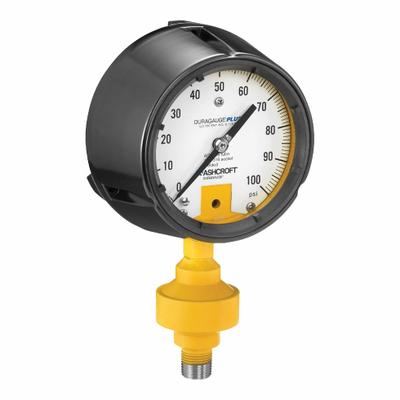

ASHCROFT Gauge/seal assembly: 0 psi to 200 psi

The ASHCROFT Gauge/seal assembly is an acid leak detection gauge with a 0 psi to 200 psi primary scale and ±1.00% accuracy. It features a phenolic case with silicone fill, a 316 SS sensor, and a Hastelloy C-276…

SKU 3G-OTH-174526

Brand
ASHCROFT
Item
Gauge/seal assembly: 0 psi to 200 psi
Category
Acid Leak Detection Gauges
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

ASHCROFT
Manufacturer Part Number
45ALD1S1HH04S200#
Type
200 psi Primary Scale Pressure Measurement - Max
Accuracy
±1.00%
Case Liquid
Silicone
Case Material
Phenolic
Mounting Type
Stem-Mount
Sensor Material
316 SS
Socket Material
Hastelloy C-276
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

ASHCROFT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The ASHCROFT Gauge/seal assembly is an acid leak detection gauge with a 0 psi to 200 psi primary scale and ±1.00% accuracy. It features a phenolic case with silicone fill, a 316 SS sensor, and a Hastelloy C-276 socket, with stem-mount configuration (MPN 45ALD1S1HH04S200#).
