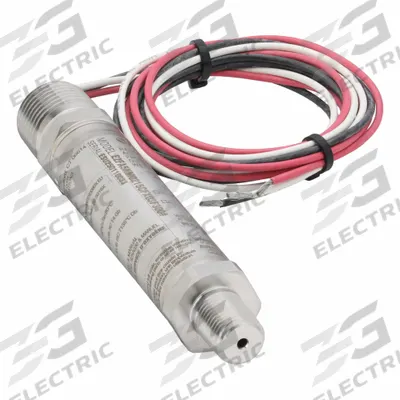

ASHCROFT Pressure Transmitter - Explosion-Proof with Conduit Connection & Wire Leads
ASHCROFTExplosion-Proof with Conduit Connection & Wire Leads

ASHCROFT Pressure Transmitter

The ASHCROFT E2F Series Pressure Transmitter (300 psi, MPN E2FA5NM0215CFX03F300#) is an explosion-proof gauge pressure transmitter with a 1/2 in NPT conduit connection and wire leads. It features a stainless steel…

SKU 3G-OTH-175380

Brand
ASHCROFT
Item
Pressure Transmitter
Category
Explosion-Proof with Conduit Connection & Wire Leads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

ASHCROFT
Manufacturer Part Number
E2FA5NM0215CFX03F300#
Series
E2F
Output
1 to 5V DC
Accuracy
±0.50%
IP Rating
IP66
NEMA Rating
4X
Overpressure
1.9x
Safety Rating
Class III, Div 1
Burst Pressure
8x
Housing Material
Stainless Steel
Intrinsically Safe
Not Specified Intrinsically Safe
Electrical Connection
1/2 in NPT Conduit with Cable
Pressure Type Measured
Gauge
Process Connection Type
NPT
NIST Traceable Certificate
No NIST-Traceable Calibration Certificate Included
Resistance Properties - TS Only
Vibration Resistant
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

ASHCROFT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The ASHCROFT E2F Series Pressure Transmitter (300 psi, MPN E2FA5NM0215CFX03F300#) is an explosion-proof gauge pressure transmitter with a 1/2 in NPT conduit connection and wire leads. It features a stainless steel housing, IP66 and NEMA 4X ratings, a 1 to 5V DC output, ±0.50% accuracy, overpressure of 1.9x, burst pressure of 8x, and vibration resistance. This Class III, Div 1 rated transmitter is not specified as intrinsically safe and includes no NIST-traceable calibration certificate.

Frequently Asked Questions

What is the ASHCROFT E2F pressure transmitter used for?

The ASHCROFT E2F Series pressure transmitter is used for industrial gauge pressure measurement in hazardous locations. Its explosion-proof design with Class III, Div 1 rating makes it suitable for environments with combustible dust or fibers, such as grain handling, textile mills, or chemical processing plants.

What are the specifications of the ASHCROFT E2F pressure transmitter?

The ASHCROFT E2F transmitter (MPN E2FA5NM0215CFX03F300#) measures 300 psi gauge pressure with ±0.50% accuracy. It has a stainless steel housing, IP66 and NEMA 4X ratings, 1/2 in NPT conduit connection with wire leads, and a 1 to 5V DC output. Overpressure is 1.9x, burst pressure is 8x, and it is vibration resistant.

Where to buy the ASHCROFT E2F pressure transmitter worldwide?

You can source the ASHCROFT E2F pressure transmitter worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we provide competitive pricing and reliable sourcing for this explosion-proof transmitter.

How to install the ASHCROFT E2F pressure transmitter?

Install the ASHCROFT E2F transmitter by connecting the 1/2 in NPT process connection to the system. Use the 1/2 in NPT conduit connection for electrical wiring, ensuring proper sealing for explosion-proof compliance. Follow standard practices for hazardous locations: verify Class III, Div 1 area classification and avoid exceeding 1.9x overpressure. Consult the manufacturer's manual for torque and wiring details.

Used in

Common applications for ASHCROFT
Process control in chemical plants — ASHCROFT G2 series pressure transmitters with 4-20 mA output
Sanitary monitoring in food processing — ASHCROFT sanitary pressure transmitters with stainless steel fittings
Temperature measurement in oil and gas — ASHCROFT flanged thermowells rated to 1,000°F
Hydraulic system pressure monitoring — ASHCROFT G2 series transmitters with 1-5 V DC output
Hazardous location pressure sensing — ASHCROFT A2X explosion-proof transmitters with conduit connection
Steam system temperature protection — ASHCROFT threaded thermowells rated to 7,000 psi

ASHCROFT Products

3G Electric supplies ASHCROFT explosion-proof with conduit connection & wire leads. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
