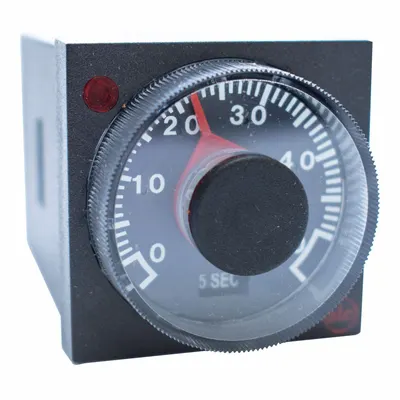

ATC DIVERSIFIED ELECTRONICS Time-Delay Relay: Socket Mounted, 10 A, 8 Pins/Terminals
The ATC DIVERSIFIED ELECTRONICS Time-Delay Relay is a socket-mounted relay with a contact rating of 10 A @ 120/240V AC. It features 8 pins/terminals and an adjustable time delay range of 5 seconds to 10 minutes…
SKU 3G-OTH-42975
Also listed as: 30417B100F2X · 3 0417B100F2X
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The ATC DIVERSIFIED ELECTRONICS Time-Delay Relay is a socket-mounted relay with a contact rating of 10 A @ 120/240V AC. It features 8 pins/terminals and an adjustable time delay range of 5 seconds to 10 minutes, identified by manufacturer part number 3-0417B100F2X.
Frequently Asked Questions
What is the ATC DIVERSIFIED ELECTRONICS Time-Delay Relay used for?
This socket-mounted time-delay relay is used in industrial control panels to introduce a programmable delay (5 sec to 10 min) before switching a load. Typical applications include motor start sequencing, conveyor timing, and HVAC system staging where precise on/off delays protect equipment and processes.
What are the specifications of the ATC DIVERSIFIED ELECTRONICS Time-Delay Relay?
The relay has a contact rating of 10 A at 120/240V AC, 8 pins/terminals, and an adjustable time delay range of 5 seconds to 10 minutes. The manufacturer part number is 3-0417B100F2X. It is a socket-mounted design from ATC DIVERSIFIED ELECTRONICS, suitable for panel integration.
Where to buy the ATC DIVERSIFIED ELECTRONICS Time-Delay Relay worldwide?
3G Electric supplies the ATC DIVERSIFIED ELECTRONICS Time-Delay Relay (MPN 3-0417B100F2X) to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time; we source and deliver this relay globally.
How to install a socket-mounted time-delay relay?
Ensure power is off. Insert the relay into the matching 8-pin socket until fully seated. Set the time delay via the onboard potentiometer (5 sec to 10 min). Wire the load to the normally open or closed contacts per your schematic. Test the delay cycle before placing the panel into service.
