AUTOMATION SYSTEMS INTERCONNECT Din Rail Mounted Connector: 6 Ports, Bare Modules, PCB-Mounted, Not Numbered - DIN Rail-Mount RJ45 Network Modules
AUTOMATION SYSTEMS INTERCONNECTDIN Rail-Mount RJ45 Network Modules

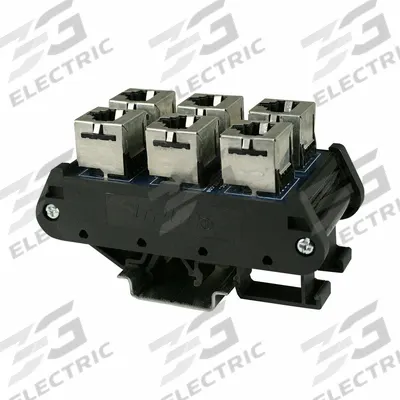

AUTOMATION SYSTEMS INTERCONNECT Din Rail Mounted Connector: 6 Ports, Bare Modules, PCB-Mounted, Not Numbered

The AUTOMATION SYSTEMS INTERCONNECT Din Rail Mounted Connector: 6 Ports is a DIN rail-mount RJ45 network module with six ports. This plastic module features PCB-mounted rear termination and is compatible with Cat5e…

SKU 3G-OTH-08787

Brand
AUTOMATION SYSTEMS INTERCONNECT
Item
Din Rail Mounted Connector: 6 Ports, Bare Modules, PCB-Mounted, Not Numbered
Category
DIN Rail-Mount RJ45 Network Modules
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

AUTOMATION SYSTEMS INTERCONNECT
Manufacturer Part Number
16023
Type
Bare Modules, PCB-Mounted, Not Numbered, Equipped
Material
Plastic
Port Labeling
Not Numbered
Rear Termination
PCB-Mounted
Compatible Adapter Type
RJ45
Compatible Cable Performance Category
Cat5e RJ45 Ethernet
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

AUTOMATION SYSTEMS INTERCONNECT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The AUTOMATION SYSTEMS INTERCONNECT Din Rail Mounted Connector: 6 Ports is a DIN rail-mount RJ45 network module with six ports. This plastic module features PCB-mounted rear termination and is compatible with Cat5e RJ45 Ethernet cables and RJ45 adapters. The ports are not numbered, and the manufacturer part number is 16023.

Frequently Asked Questions

What is the AUTOMATION SYSTEMS INTERCONNECT 16023 DIN rail connector used for?

This 6-port DIN rail-mounted RJ45 module is used to organize and terminate Cat5e Ethernet cables in industrial control panels. It provides a clean, PCB-mounted connection point for network devices, simplifying wiring and maintenance in automation systems.

What are the specifications of the AUTOMATION SYSTEMS INTERCONNECT 16023?

The 16023 is a 6-port DIN rail-mount RJ45 network module with plastic housing. It features PCB-mounted rear termination, is compatible with Cat5e RJ45 Ethernet cables and RJ45 adapters, and has unnumbered ports. The manufacturer part number is 16023.

Where to buy the AUTOMATION SYSTEMS INTERCONNECT 16023 worldwide?

3G Electric supplies the AUTOMATION SYSTEMS INTERCONNECT 16023 DIN rail connector to customers worldwide. We handle full logistics, customs clearance, and delivery, ensuring you receive the correct part for your industrial network installation.

How to install a DIN rail-mounted RJ45 connector like the 16023?

Snap the module onto a standard 35 mm DIN rail. Terminate Cat5e cables to the PCB-mounted rear pins using a punch-down tool, then plug RJ45 patch cords into the front ports. Ensure cables are secured to avoid strain on the PCB connections.

Used in

Common applications for AUTOMATION SYSTEMS INTERCONNECT
Industrial control panel wiring — Automation Systems Interconnect DIN rail-mount RJ45 patch panels (16013, 16023, 16033) for structured cabling in automation cabinets.
Motor disconnect applications — Automation Systems Interconnect enclosed motor disconnect switch (C0400010R) for 3-pole, 600V AC motor isolation in machinery.
Changeover switching — Automation Systems Interconnect rotary cam changeover switch (C0400011R) for 4-pole, 600V AC circuit selection in industrial power distribution.
Field device connectivity — Automation Systems Interconnect Ethernet panel interface (RAI-SAC-102-B) with IP65 rating for outdoor or washdown-area network connections.
DIN rail preparation — Automation Systems Interconnect DIN rail cutter (ASI305001) for cutting standard and miniature rail to length during panel assembly.
Network infrastructure in control cabinets — Automation Systems Interconnect 6-port DIN rail-mount RJ45 module (16023) for terminating Ethernet cables in confined spaces.
