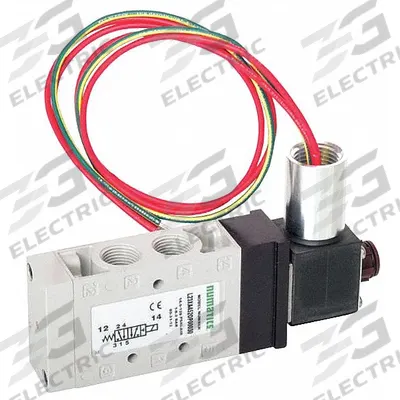

AVENTICS Solenoid Air Control Valve: Series L2, Single Solenoid, Five-Way / Two-Position - Aventics L2 Directional Control Valves
AVENTICSAventics L2 Directional Control Valves

AVENTICS Solenoid Air Control Valve: Series L2, Single Solenoid, Five-Way / Two-Position

The AVENTICS Solenoid Air Control Valve, Series L2, is a five-way/two-position directional control valve with a single solenoid and spring return mechanism. This non-locking valve operates on 24V DC and is identified…

SKU 3G-OTH-153420

Brand
AVENTICS
Item
Solenoid Air Control Valve: Series L2, Single Solenoid, Five-Way / Two-Position
Category
Aventics L2 Directional Control Valves
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

AVENTICS
Manufacturer Part Number
L22XA452BP00061
Type
Single Solenoid, Five-Way / Two-Position
DC
24V
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

AVENTICS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The AVENTICS Solenoid Air Control Valve, Series L2, is a five-way/two-position directional control valve with a single solenoid and spring return mechanism. This non-locking valve operates on 24V DC and is identified by manufacturer part number L22XA452BP00061.

Frequently Asked Questions

What is the AVENTICS L2 solenoid air control valve used for?

The AVENTICS L2 solenoid air control valve is used to direct compressed air in pneumatic systems, typically for actuating cylinders or other actuators in industrial automation, packaging, and material handling applications.

What are the specifications of the AVENTICS L22XA452BP00061 valve?

The AVENTICS L22XA452BP00061 is a Series L2 solenoid air control valve, five-way/two-position, single solenoid with spring return, non-locking, and operates on 24V DC. It is a directional control valve for pneumatic circuits.

Where to buy AVENTICS L2 valves worldwide?

You can source AVENTICS L2 valves worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.

How to install an AVENTICS L2 solenoid valve?

Mount the valve securely on a manifold or sub-base, connect the 24V DC solenoid coil to a suitable power supply, and route compressed air lines to the correct ports. Ensure the spring return mechanism is unobstructed. Follow standard pneumatic installation practices.

Used in

Common applications for AVENTICS
Automated assembly lines — AVENTICS L2 series double-solenoid valves for precise cylinder control in pick-and-place operations.
Packaging machinery — AVENTICS CERAM series valves with detent for maintaining clamp or hold positions during sealing cycles.
Material handling systems — AVENTICS L1 series single-solenoid valves for simple conveyor diverters and stop gates.
Process control panels — AVENTICS XV manifold sub-bases for compact integration of multiple valves in limited-space enclosures.
Machine tool coolant systems — AVENTICS 581 series plug-in valves for reliable switching of pneumatic actuators in harsh environments.
