Beckett GeniSys® CAD Cell Flame Detector Kit | 7006U
Beckett GeniSys CAD Cell flame detector kit for oil burners. Light-sensitive safety control that monitors flame presence in residential and light commercial heating systems with fast response time and simple two-wire…
SKU 3G-BKT-00023
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
Beckett GeniSys CAD Cell flame detector kit for oil burners. Light-sensitive safety control that monitors flame presence in residential and light commercial heating systems with fast response time and simple two-wire connection.
Frequently Asked Questions
What is the Beckett GeniSys CAD Cell Flame Detector Kit used for?
The Beckett GeniSys CAD Cell Flame Detector Kit is a light-sensitive safety control for oil burners. It monitors flame presence in residential and light commercial heating systems, providing fast response time and a simple two-wire connection to ensure safe burner operation.
What are the specifications of the Beckett GeniSys CAD Cell Flame Detector Kit?

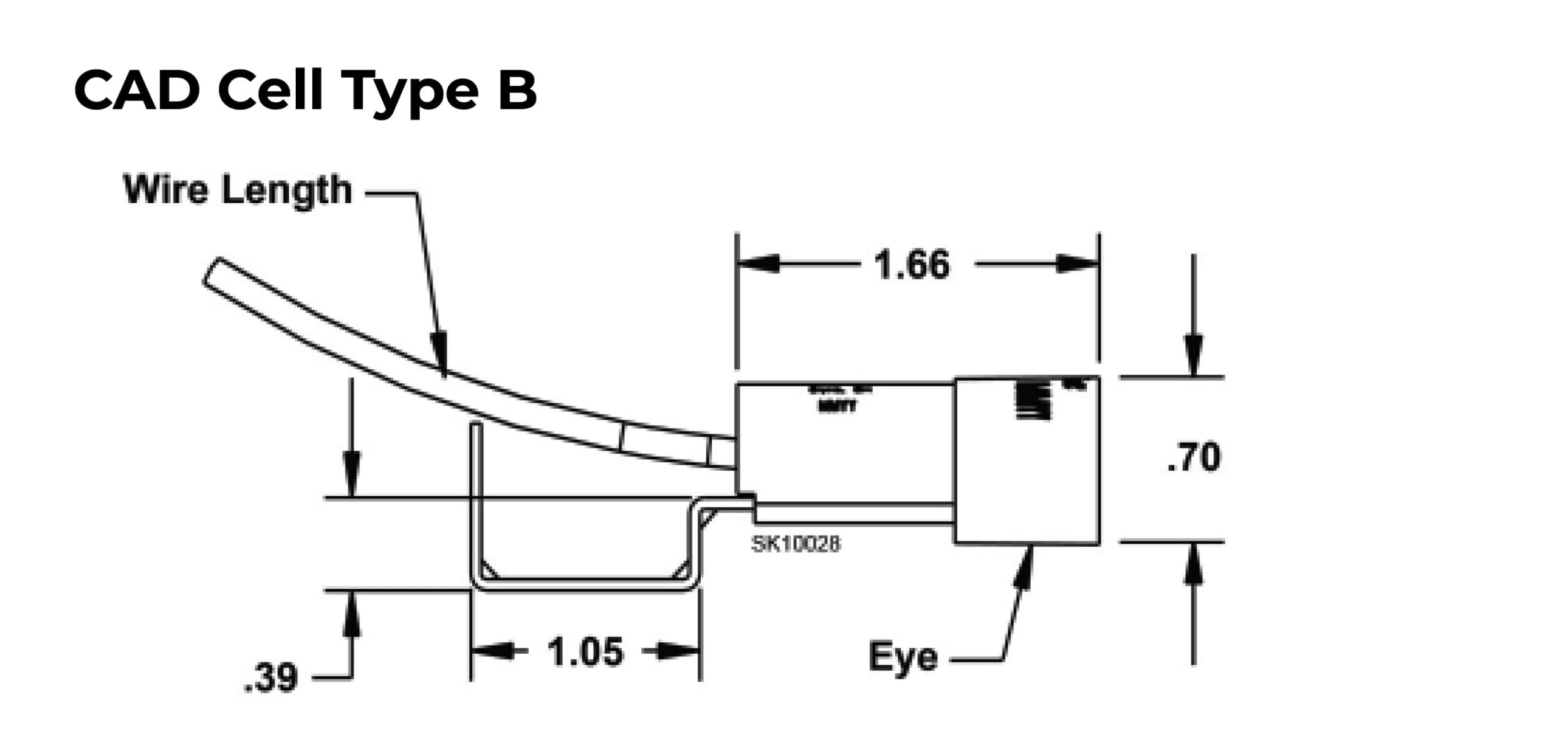

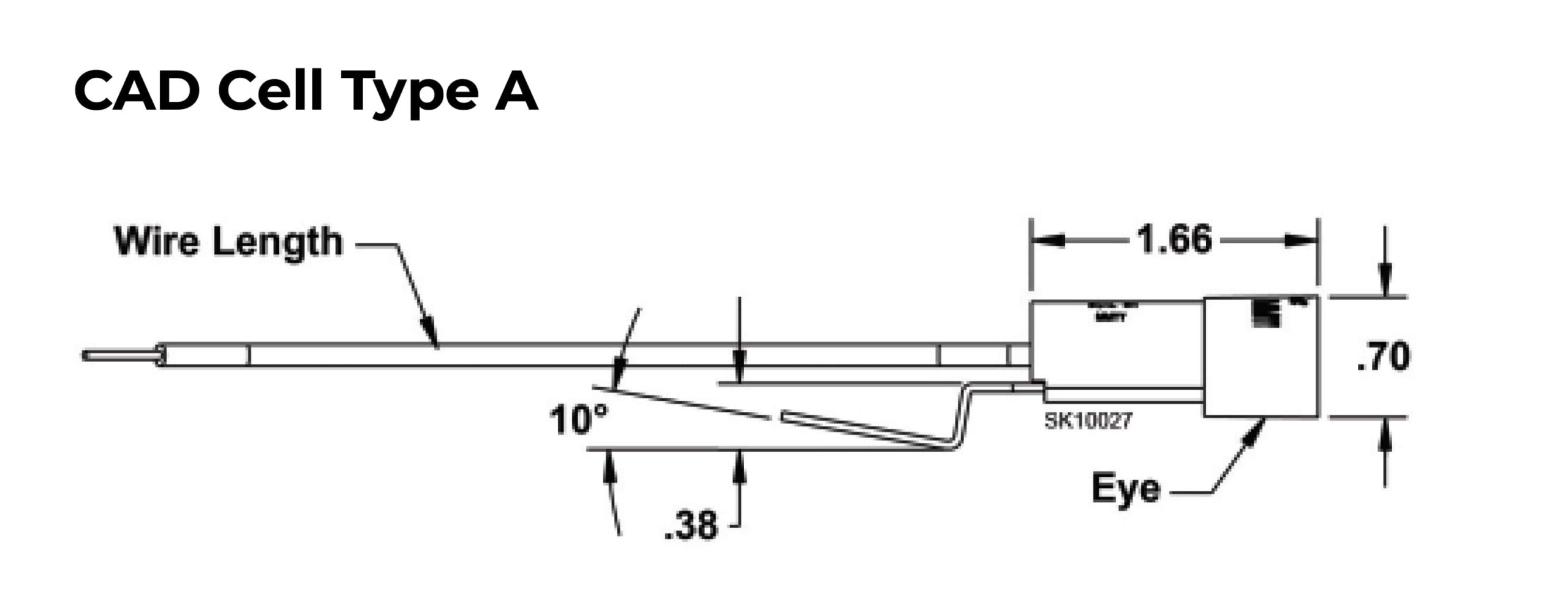

The kit features a two-wire connection and is available in multiple models with wire lengths from 6.00 to 54.00 inches. The maximum ambient temperature at the CAD cell location is 140°F (60°C). Models include Type A and Type B configurations for flexible installation.
Where to buy the Beckett GeniSys CAD Cell Flame Detector Kit in Singapore?
3G Electric supplies the Beckett GeniSys CAD Cell Flame Detector Kit to customers in Singapore. We handle logistics, customs clearance, and delivery to your location. Contact us for pricing and lead time on this oil burner safety control.
How to install the Beckett GeniSys CAD Cell Flame Detector Kit?
Installation requires connecting the two wires to the burner control circuit and positioning the CAD cell to view the flame. Ensure the ambient temperature at the cell location does not exceed 140°F (60°C). Follow the manufacturer's instructions for proper flame detection and safety.
Key Features
- Cadmium sulfide photoconductive flame detection technology
- Fast response time for flame failure detection
- Simple two-wire connection to primary safety controls
- Compatible with Beckett 7505 and multiple Honeywell control models
- High resistance in darkness, low resistance in light presence
- Suitable for furnaces, boilers, domestic hot water tanks, pressure washers
- Maximum ambient operating temperature: 140°F (60°C)
- Plug-in light-sensitive cell design with direct flame line-of-sight installation
- Multiple wire length configurations available (6" to 54")
- Requires trained service technician installation
