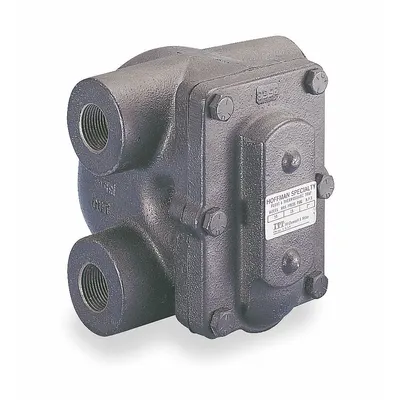

BELL & GOSSETT Steam Trap: Cast Iron, 3/4 in FNPT, 1,450 lb/hr, 75 psi Max., 406°F Max.
The BELL & GOSSETT Steam Trap is a Cast Iron H-Pattern Float & Thermostatic Steam Trap (MPN FT075H-3). It features a 3/4 in FNPT connection, a capacity of 1,450 lb/hr, a maximum pressure of 75 psi, and a maximum…
SKU 3G-OTH-71261
Also listed as: FT075H3 · FT075H 3
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The BELL & GOSSETT Steam Trap is a Cast Iron H-Pattern Float & Thermostatic Steam Trap (MPN FT075H-3). It features a 3/4 in FNPT connection, a capacity of 1,450 lb/hr, a maximum pressure of 75 psi, and a maximum temperature of 406°F. The float is made of cast iron, and the trap is designed for horizontal installation as part of the H series.
Frequently Asked Questions
What is the BELL & GOSSETT FT075H-3 steam trap used for?
The BELL & GOSSETT FT075H-3 is a cast iron H-pattern float and thermostatic steam trap used to automatically drain condensate from steam lines while preventing steam loss. It is suitable for industrial heating systems, process steam mains, and unit heaters where reliable condensate removal is required.
What are the specifications of the BELL & GOSSETT FT075H-3 steam trap?
The BELL & GOSSETT FT075H-3 has a 3/4 in FNPT connection, a condensate capacity of 1,450 lb/hr, a maximum pressure of 75 psi, and a maximum temperature of 406°F. The float is cast iron, and the trap is designed for horizontal installation as part of the H series.
Where to buy the BELL & GOSSETT FT075H-3 steam trap worldwide?
You can source the BELL & GOSSETT FT075H-3 steam trap through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time.
How to install the BELL & GOSSETT FT075H-3 steam trap?
Install the BELL & GOSSETT FT075H-3 in a horizontal orientation with the inlet and outlet properly aligned. Ensure the trap is positioned below the steam line to allow gravity drainage. Use pipe supports to avoid stress on connections. Follow standard piping best practices for steam traps.
Used in
Common applications for BELL & GOSSETTBELL & GOSSETT Products
3G Electric supplies BELL & GOSSETT cast iron h-pattern float & thermostatic steam traps. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
