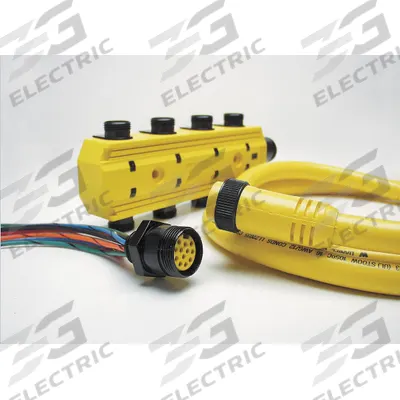

BRAD HARRISON Cordset: 1 1/8"-16 Female Straight x Bare Wire, 12 Pins, Yellow, PVC - Single-Ended Cordsets
BRAD HARRISONSingle-Ended Cordsets

BRAD HARRISON Cordset: 1 1/8"-16 Female Straight x Bare Wire, 12 Pins, Yellow, PVC

This single-ended cordset from BRAD HARRISON features a 1 1/8"-16 female straight connector to bare wire, with 12 pins and a 1 ft yellow PVC cable. It is rated IP67 and uses 16 AWG wire, making it suitable for…

SKU 3G-OTH-48095

Brand
BRAD HARRISON
Item
Cordset: 1 1/8"-16 Female Straight x Bare Wire, 12 Pins, Yellow, PVC
Category
Single-Ended Cordsets
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

BRAD HARRISON
Manufacturer Part Number
3R2004A20A120
Type
Yellow, PVC
Pins
12
Cable Lg
1 ft
IP Rating
IP67
Wire Size
16 AWG
Cable Jacket Color
Yellow
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

BRAD HARRISON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

This single-ended cordset from BRAD HARRISON features a 1 1/8"-16 female straight connector to bare wire, with 12 pins and a 1 ft yellow PVC cable. It is rated IP67 and uses 16 AWG wire, making it suitable for industrial connectivity applications.

Frequently Asked Questions

What is a BRAD HARRISON single-ended cordset used for?

This BRAD HARRISON cordset connects industrial sensors and actuators to control systems. Its 1 1/8"-16 female straight connector and 12-pin configuration provide reliable signal or power transmission in factory automation and process control applications.

What are the specifications of the BRAD HARRISON 3R2004A20A120 cordset?

This cordset has a 1 1/8"-16 female straight connector to bare wire, 12 pins, and a 1 ft yellow PVC cable. It is rated IP67 for dust and water ingress protection and uses 16 AWG wire. The manufacturer part number is 3R2004A20A120.

Where to buy BRAD HARRISON cordsets worldwide?

3G Electric supplies BRAD HARRISON cordsets worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time on the 3R2004A20A120 or other BRAD HARRISON connectivity products.

How to select the right BRAD HARRISON cordset for an application?

Match the connector thread size (1 1/8"-16), pin count (12), and cable length to your device. Ensure the IP rating (IP67) suits the environment and wire gauge (16 AWG) meets current requirements. BRAD HARRISON offers various configurations; verify compatibility with your sensor or actuator.

Used in

Common applications for BRAD HARRISON
Factory automation — BRAD HARRISON M12 cordsets (e.g., SKU 2EPL5) connect proximity sensors to PLC I/O modules in assembly lines.
Material handling — BRAD HARRISON 7/8"-16 cordsets (SKU 5AA48) power solenoid valves on conveyor systems.
Process control — BRAD HARRISON Micro M12 receptacles (SKU 2EPG9) interface with pressure transmitters in chemical plants.
Packaging machinery — BRAD HARRISON M12 right-angle cordsets (SKU 2EPH8) connect photoelectric sensors in tight spaces.
Washdown environments — BRAD HARRISON IP68-rated cordsets (SKU 2EPN1) are used in food processing equipment requiring frequent cleaning.
Robotics — BRAD HARRISON M12 male cordsets (SKU 2ENL8) provide signal connections for end-of-arm tooling.

BRAD HARRISON Products

3G Electric supplies BRAD HARRISON single-ended cordsets. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
