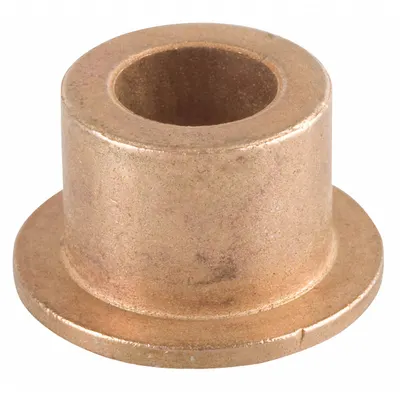

BUNTING BEARINGS Flanged Sleeve Bearing: SAE 841 Bronze
The BUNTING BEARINGS Flanged Sleeve Bearing is a lubricated low-speed metallic flanged sleeve bearing made from SAE 841 bronze. It features a 1/4 in bore, 3/8 in OD, 3/8 in length, and is lubricated with SAE 90 Oil…
SKU 3G-OTH-95839
Also listed as: EXEF 040606 · EXEF-040606
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
The BUNTING BEARINGS Flanged Sleeve Bearing is a lubricated low-speed metallic flanged sleeve bearing made from SAE 841 bronze. It features a 1/4 in bore, 3/8 in OD, 3/8 in length, and is lubricated with SAE 90 Oil with PTFE. This inch-system bearing operates within a temperature range of -40°F to 460°F and is sold in a pack of 3.
Frequently Asked Questions
What is a BUNTING BEARINGS flanged sleeve bearing used for?
This BUNTING BEARINGS flanged sleeve bearing is used in low-speed, high-load applications such as conveyors, packaging machinery, and agricultural equipment. The SAE 841 bronze construction with SAE 90 oil and PTFE lubrication provides self-lubricating operation, reducing maintenance in oscillating or rotating shaft applications.
What are the specifications of the BUNTING BEARINGS flanged sleeve bearing EXEF040606?
This BUNTING BEARINGS flanged sleeve bearing has a 1/4 in bore, 3/8 in OD, and 3/8 in length. It is made from SAE 841 bronze, lubricated with SAE 90 oil and PTFE, and operates from -40°F to 460°F. It uses the inch system and is sold in a pack of 3.
Where to buy BUNTING BEARINGS flanged sleeve bearings worldwide?
You can source BUNTING BEARINGS flanged sleeve bearings worldwide through 3G Electric. As a global industrial equipment distributor since 1990, 3G Electric handles full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on the EXEF040606 bearing.
How to install a BUNTING BEARINGS flanged sleeve bearing?
To install this BUNTING BEARINGS flanged sleeve bearing, ensure the housing bore is clean and free of burrs. Press the bearing into the housing using an arbor press, applying force only on the flange face. Align the bore with the shaft, and lubricate the shaft surface before assembly. Avoid hammering to prevent damage.
Used in
Common applications for BUNTING BEARINGSBUNTING BEARINGS Products
3G Electric supplies BUNTING BEARINGS lubricated low-speed metallic flanged sleeve bearings. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
