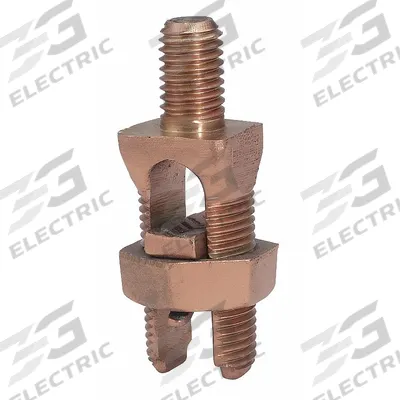

BURNDY Grounding Split Bolt Connector with Stud: Leaded Bronze Alloy

The BURNDY KC17 is used to terminate and connect a single copper grounding wire (10 to 6 AWG SOL) to a ground rod, bus bar, or equipment frame. It is commonly applied in electrical grounding systems for industrial, commercial, and utility installations where a secure, low-resistance bond is required.

The BURNDY KC17 is a K2C Series grounding split bolt connector made of bronze. It accepts one 10 to 6 AWG SOL grounding wire and has a 1/4"-20 thread size stud. The bronze material provides corrosion resistance and reliable conductivity for grounding applications.

3G Electric supplies the BURNDY KC17 grounding split bolt connector to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this bronze K2C series connector for 10 to 6 AWG SOL wires.

To install the BURNDY KC17, strip the grounding wire insulation, insert the conductor into the split bolt groove, and tighten the nut to the recommended torque. Ensure the stud (1/4"-20 thread) is securely fastened to the ground bar or rod. Always follow NEC and local codes for grounding connections.
