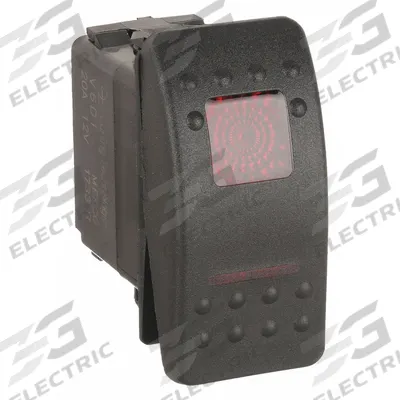

CARLING TECHNOLOGIES Lighted Rocker Switch: 3 Positions, SPDT, On/Off/On - Environmentally Sealed Rocker Switches
CARLING TECHNOLOGIESEnvironmentally Sealed Rocker Switches

CARLING TECHNOLOGIES Lighted Rocker Switch: 3 Positions, SPDT, On/Off/On

The CARLING TECHNOLOGIES Lighted Rocker Switch is an environmentally sealed rocker switch from the V Series, featuring a 3-position SPDT On/Off/On configuration with red illumination. It is rated for 15 A @ 125 V AC…

SKU 3G-OTH-35987

Brand
CARLING TECHNOLOGIES
Item
Lighted Rocker Switch: 3 Positions, SPDT, On/Off/On
Category
Environmentally Sealed Rocker Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

CARLING TECHNOLOGIES
Manufacturer Part Number
V6D1D66B-ASC00-000
Series
V
Horsepower
1/2 hp @ 125 to 250 V
Switch Color
Red
Includes Lens
Lens Included
Displayed Brand
CARLING TECHNOLOGIES
AC Contact Rating
15 A @ 125 V
DC Contact Rating
20 A @ 12 V
Includes Lamp Module
No Lamp Module Included
NEMA Enclosure Rating
No Enclosure
Operator Illumination
Illuminated
Terminal Connection Type
Quick-Connect Tab Terminals
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CARLING TECHNOLOGIES Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CARLING TECHNOLOGIES Lighted Rocker Switch is an environmentally sealed rocker switch from the V Series, featuring a 3-position SPDT On/Off/On configuration with red illumination. It is rated for 15 A @ 125 V AC and 20 A @ 12 V DC, with a horsepower rating of 1/2 hp @ 125 to 250 V. The switch includes a lens and uses quick-connect tab terminals, with no lamp module included and no NEMA enclosure rating.

Frequently Asked Questions

What is the CARLING TECHNOLOGIES V6D1D66B-ASC00-000 lighted rocker switch used for?

This CARLING TECHNOLOGIES V Series lighted rocker switch is used for industrial control panels, marine equipment, and heavy machinery requiring a sealed, illuminated On/Off/On SPDT switch. It handles 15 A @ 125 V AC or 20 A @ 12 V DC, and 1/2 hp @ 125 to 250 V, making it suitable for motor and power circuits.

What are the specifications of the CARLING TECHNOLOGIES V6D1D66B-ASC00-000 rocker switch?

The CARLING TECHNOLOGIES V6D1D66B-ASC00-000 is a 3-position SPDT On/Off/On illuminated rocker switch with red color. AC contact rating is 15 A @ 125 V; DC contact rating is 20 A @ 12 V; horsepower rating is 1/2 hp @ 125 to 250 V. It uses quick-connect tab terminals, includes a lens, and has no NEMA enclosure rating.

Where to buy the CARLING TECHNOLOGIES V6D1D66B-ASC00-000 switch worldwide?

3G Electric supplies the CARLING TECHNOLOGIES V6D1D66B-ASC00-000 lighted rocker switch worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we source and deliver this switch to any country.

How to install the CARLING TECHNOLOGIES V6D1D66B-ASC00-000 rocker switch?

Install the CARLING TECHNOLOGIES V6D1D66B-ASC00-000 by connecting quick-connect tab terminals to appropriate wiring per your circuit voltage (AC or DC). Ensure the panel cutout matches the switch dimensions. No lamp module is included, so illumination requires external circuit. Follow standard electrical safety practices and consult the manufacturer's datasheet.

Used in

Common applications for CARLING TECHNOLOGIES
Industrial control panels — Carling Technologies F Series toggle switches for On/Off/On control of motors and pumps
Marine electrical systems — Carling Technologies 700 series rotary switches for selecting battery banks or generator modes
Off-highway vehicle dashboards — Carling Technologies R135 series rotary switches for headlight or wiper control
HVAC equipment — Carling Technologies 170 series miniature push buttons for momentary fan or compressor activation
Generator sets — Carling Technologies 6FA58-73 toggle switch for manual start/stop with momentary off function
Material handling machinery — Carling Technologies 110-SP maintained push button for emergency stop or latch-on control
