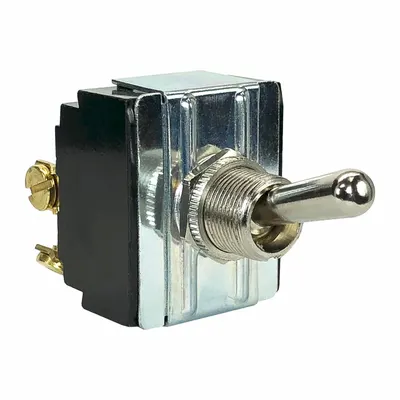

CARLING TECHNOLOGIES Toggle Switch: 3 Position, 9 Connections, 3PDT
The CARLING TECHNOLOGIES Toggle Switch is a panel-mount, 3-position switch with an On/Off/On configuration. This 3PDT model (MPN HM254-73) features 9 connections and screw terminals, rated at 10 A @ 250 V AC and 3/4…
SKU 3G-OTH-35135
Also listed as: HM25473 · HM254 73
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The CARLING TECHNOLOGIES Toggle Switch is a panel-mount, 3-position switch with an On/Off/On configuration. This 3PDT model (MPN HM254-73) features 9 connections and screw terminals, rated at 10 A @ 250 V AC and 3/4 hp. It belongs to the Series H line.
Frequently Asked Questions
What is the CARLING TECHNOLOGIES HM254-73 toggle switch used for?
The CARLING TECHNOLOGIES HM254-73 is a panel-mount 3PDT toggle switch used for industrial control circuits, motor switching, and equipment power management. Its On/Off/On configuration and 10 A @ 250 V AC rating suit applications in machining, material handling, and HVAC systems.
What are the specifications of the CARLING TECHNOLOGIES HM254-73 toggle switch?
The HM254-73 is a 3-position, 3PDT toggle switch with 9 screw-terminal connections. It has an AC contact rating of 10 A @ 250 V and a horsepower rating of 3/4 hp. It belongs to the CARLING TECHNOLOGIES Series H line and is designed for panel mounting.
Where to buy the CARLING TECHNOLOGIES HM254-73 toggle switch worldwide?
3G Electric supplies the CARLING TECHNOLOGIES HM254-73 toggle switch to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your facility. Contact us for a quote and lead time on this Series H switch.
How to install a CARLING TECHNOLOGIES panel-mount toggle switch?
To install a CARLING TECHNOLOGIES panel-mount toggle switch, cut a standard panel hole, insert the switch, and secure it with the mounting nut. Connect wires to the screw terminals per your circuit diagram, ensuring the On/Off/On function matches your control logic. Always de-energize circuits before installation.
Used in
Common applications for CARLING TECHNOLOGIESCARLING TECHNOLOGIES Products
3G Electric supplies CARLING TECHNOLOGIES panel-mount toggle switches. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
