DSZHHVAC Tools

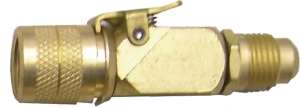

DSZH Quick connector DR.5/16Mx5/16F 26C

SKU 3G-CBM-01653

Also listed as: COR 50222 · COR-50222

Brand

DSZH

Item

Quick connector DR.5/16Mx5/16F 26C

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

DSZH Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

DSZH Quick connector DR.5/16Mx5/16F 26C

Frequently Asked Questions

What is the DSZH Quick connector DR.5/16Mx5/16F 26C used for?

The DSZH Quick connector DR.5/16Mx5/16F 26C is used in HVAC systems to quickly connect or disconnect refrigerant lines. It is designed for service and maintenance tasks, enabling technicians to attach gauges or charging hoses without tools, reducing downtime during installation or repair.

What are the specifications of the DSZH Quick connector DR.5/16Mx5/16F 26C?

The DSZH Quick connector DR.5/16Mx5/16F 26C features a 5/16-inch male flare (M) to 5/16-inch female flare (F) connection. It is part of the DR series and is designed for use with HVAC refrigerant systems. No additional technical specifications are provided by the manufacturer.

Where to buy the DSZH Quick connector DR.5/16Mx5/16F 26C in Singapore?

You can source the DSZH Quick connector DR.5/16Mx5/16F 26C through 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your location. Contact us for pricing and lead time on this HVAC tool.

How to install the DSZH Quick connector DR.5/16Mx5/16F 26C?

To install the DSZH Quick connector DR.5/16Mx5/16F 26C, ensure the refrigerant line ends are clean and free of debris. Hand-tighten the male end into the female port until snug, then use a wrench for a final quarter turn. Avoid over-tightening to prevent damage to the flare seal.

Used in

Common applications for DSZH

Split-system air-conditioner service: DSZH manifold bases and SAE/NPT reducers integrate with technician gauge sets for pressure monitoring and refrigerant charge.

Rooftop packaged unit maintenance: Flare connector caps, hose tips, and union fittings expedite field replacement of damaged lines and adapters on commercial cooling systems.

Refrigerant recovery and recycling: DSZH bottle adapters (R600A-rated) connect recovery cylinders to hose lines, enabling safe extraction of flammable and standard refrigerants.

Process-cooling loop installation: SAE straight male/female unions and reducers support temporary or permanent manifold assembly on industrial water-chilled equipment.

Heat-pump seasonal service: DSZH dudgeon extensions and adapter kits allow technicians to connect diagnostic gauges to restricted or recessed access ports on reversing-valve manifolds.

Field emergency repairs: Individual DSZH fittings stocked in stock allow technicians to repair or modify hose connections on-site without returning to the shop for components.
