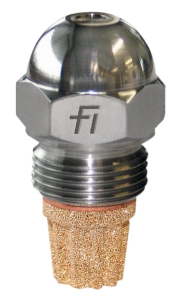

CBM Fluidics 1.65 45° HF

CBM Fluidics 1.65 is a 45° hollow-cone oil nozzle designed for industrial combustion applications. Operating at 7 bar nominal pressure with 0.30 Usgph flow rate, it delivers 92% combustion efficiency. Suitable for…

SKU 3G-CBM-03923

Also listed as: FLU 15014 · FLU-15014

Brand

CBM

Item

Fluidics 1.65 45° HF

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

CBM

spray type

HF (cone-creux)

spray angle

45°

fuel density

0.84 kg/l

flow rate l h

1.4

pressure test

10 bar

spray pattern

hollow

energy content

42700 kJ/kg

fuel viscosity

3.4 cSt

flow rate usgph

1.65

pressure nominal

7 bar

flow rate nominal

0.30 Usgph

combustion efficiency

92%

Datasheet Content

GICLEURS DE
PULVERISATION
Deux filtres incorporés,
spécialement disposés en cascade pour les gicleurs recouvrants la gamme des
débits entre 0,30 à 1,00 USgph, assurent une sécurité d’emploi nettement
supérieure au standard d’un filtre.

Produit fini de qualité exemplaire
grâce à notre procédé de contrôle optoélectronique, sans concurrence.

La comparaison régulière du produit manufacturé avec des gicleurs de
références, garanti une équivalence de finition, reproductible même après des
années.

Exactitude des débits supérieure
aux recommandations de la norme européenne EN 293

Grande indépendance du débit
et de la géométrie de pulvérisation envers toute variation de viscosité du fuel et
de ce fait, influence négligeable de l’effet d’un préchauffage de fuel sur la tringle
de buse.

Résultat et silence de combustion exceptionnels à partir de 6 Bar de pression de
pulvérisation.




                      22
          Débit à 10 bar en                       DÉBIT NOMINAL                     Cône-pleins SF 1)                                    Cône-creux HF 1)
                                                 à 7 bar de pression
       L/h       kg/h3)          KW4)               en Usgal/h2)                   45°         60°       70°         80°       45°         60°       70°    80°
      1,4         1,1        12,4                      0,30 Gph                      •          •                     •
                                                                                                                                           non livrable
      1,6         1,3        14,5                      0,35 Gph                      •          •                     •
      1,8         1,5        16,6                      0,40 Gph                      •          •                     •          •          •         •         •
      2,0         1,7        18,7                      0,45 Gph                      •          •                     •          •          •                   •
      2,3         1,9        20,7                      0,50 Gph                      •          •                     •          •          •                   •
      2,5         2,1        22,8                      0,55 Gph                      •          •                     •          •          •                   •
      2,7         2,3        24,9                      0,60 Gph                      •          •                     •          •          •                   •
      2,9         2,5        27,0                      0,65 Gph                      •          •                     •          •          •                   •
      3,4         2,9        31,1                      0,75 Gph                      •          •                     •          •          •                   •
      3,8         3,2        35,2                      0,85 Gph                      •          •                     •          •          •                   •
      4,5         3,8        41,5                      1,00 Gph                      •          •                     •          •          •                   •
                                                                                             Cône-pleins S 1)                            Cône-creux H 1)
      5,0         4,2        45,6                      1,10 Gph                          •           •           •                   •           •          •
      5,7         4,8        51,8                      1,25 Gph                          •           •           •                   •           •          •
      6,1         5,1        56,0                      1,35 Gph                          •           •           •                   •           •          •
      6,8         5,7        62,2                      1,50 Gph                          •           •           •                   •           •          •
      7,5         6,3        68,4                      1,65 Gph                          •           •           •                   •           •          •
      7,9         6,7        72,6                      1,75 Gph                          •           •           •                   •           •          •
      9,0         7,6        82,9                      2,00 Gph                          •           •           •                   •           •          •
     10,2         8,6        93,3                      2,25 Gph                          •           •                               •           •          •
     11,3         9,5       103,7                      2,50 Gph                          •           •                               •           •          •
     12,4        10,5       114,0                      2,75 Gph                                      •                               •           •          •
     13,6        11,4       124,4                      3,00 Gph                          •                                           •           •          •
     15,8        13,3       145,1                      3,50 Gph                                                                      •           •
     18,1        15,2       165,9                      4,00 Gph                                                                      •           •
     20,4        17,1       186,6                      4,50 Gph                                                                      •           •
     22,6        19,0       207,3                      5,00 Gph                                                                      •           •
     24,9        20,9       228,1                      5,50 Gph                                                                      •           •
     27,1        22,8       248,8                      6,00 Gph                                                                      •           •
     29,4        24,7       269,5                      6,50 Gph                                                                      •           •
     31,7        26,6       290,3                      7,00 Gph                                                                      •           •
     33,9        28,5       311,0                      7,50 Gph                                                                      •           •
     36,2        30,4       331,7                      8,00 Gph                                                                      •           •
     40,7        34,2       373,2                      9,00 Gph                                                                      •           •
     45,2        38,0       414,7                     10,00 Gph
1)
     jusqu’à 1,00 gph SF ou HF     2)
                                        viscosité 3.4 cSt, selon EN 293   3)
                                                                               Poids spécifique : 0.84 kg/l     4)
                                                                                                                     Hu = 42 700 kj/kg, avec 92% de rendement
      •        Disponible sur stock                                       Sur commande

                                                             Accessoires                                                                             Code

               Fix Drip                                                                                                                              FLU20002



                                                                   23
FLU05002   FLUIDICS 0,30 45° SF   FLU05086    FLUIDICS 1,75 80° S   FLU15013    FLUIDICS 1,50 80° H
FLU05004   FLUIDICS 0,30 60° SF   FLU05087    FLUIDICS 2,00 45° S   3G-CBM-03923    FLUIDICS 1,65 45° H
FLU05006   FLUIDICS 0,30 80° SF   FLU05088    FLUIDICS 2,00 60° S   FLU15015    FLUIDICS 1,65 60° H
FLU05008   FLUIDICS 0,35 45° SF   FLU05089    FLUIDICS 2,00 80° S   FLU15016    FLUIDICS 1,65 80° H
FLU05010   FLUIDICS 0,35 60° SF   FLU05090    FLUIDICS 2,75 60° S   FLU15017    FLUIDICS 1,75 45° H
FLU05012   FLUIDICS 0,35 80° SF   FLU05091    FLUIDICS 2,50 45° S   FLU15018    FLUIDICS 1,75 60° H
FLU05014   FLUIDICS 0,40 45° SF   FLU05092    FLUIDICS 3,00 45° S   FLU15019    FLUIDICS 1,75 80° H
FLU05016   FLUIDICS 0,40 60° SF   FLU05093    FLUIDICS 2,50 60° S   FLU15020    FLUIDICS 2,00 45° H
FLU05018   FLUIDICS 0,40 80° SF   FLU05094    FLUIDICS 2,25 60° S   FLU15021    FLUIDICS 2,00 60° H
FLU05020   FLUIDICS 0,45 45° SF   FLU05095    FLUIDICS 2,25 45° S   FLU15022    FLUIDICS 2,00 80° H
FLU05022   FLUIDICS 0,45 60° SF   FLU10002   FLUIDICS 0,40 45° HF   FLU15023    FLUIDICS 2,25 45° H
FLU05024   FLUIDICS 0,45 80° SF   FLU10004   FLUIDICS 0,40 60° HF   FLU15024    FLUIDICS 2,25 60° H
FLU05026   FLUIDICS 0,50 45° SF   FLU10006   FLUIDICS 0,40 80° HF   FLU15025    FLUIDICS 2,25 80° H
FLU05028   FLUIDICS 0,50 60° SF   FLU10008   FLUIDICS 0,45 45° HF   FLU15026    FLUIDICS 2,50 45° H
FLU05030   FLUIDICS 0,50 80° SF   FLU10010   FLUIDICS 0,45 60° HF   FLU15027    FLUIDICS 2,50 60° H
FLU05032   FLUIDICS 0,55 45° SF   FLU10012   FLUIDICS 0,45 80° HF   FLU15028    FLUIDICS 2,50 80° H
FLU05034   FLUIDICS 0,55 60° SF   FLU10014   FLUIDICS 0,50 45° HF   FLU15029    FLUIDICS 2,75 45° H
FLU05036   FLUIDICS 0,55 80° SF   FLU10016   FLUIDICS 0,50 60° HF   FLU15030    FLUIDICS 2,75 60° H
FLU05038   FLUIDICS 0,60 45° SF   FLU10018   FLUIDICS 0,50 80° HF   FLU15031    FLUIDICS 2,75 80° H
FLU05040   FLUIDICS 0,60 60° SF   FLU10020   FLUIDICS 0,55 45° HF   FLU15032    FLUIDICS 3,00 45° H
FLU05042   FLUIDICS 0,60 80° SF   FLU10022   FLUIDICS 0,55 60° HF   FLU15033    FLUIDICS 3,00 60° H
FLU05044   FLUIDICS 0,65 45° SF   FLU10024   FLUIDICS 0,55 80° HF   FLU15034    FLUIDICS 3,00 80° H
FLU05046   FLUIDICS 0,65 60° SF   FLU10026   FLUIDICS 0,60 45° HF   FLU15035    FLUIDICS 3,50 45° H
FLU05048   FLUIDICS 0,65 80° SF   FLU10028   FLUIDICS 0,60 60° HF   FLU15036    FLUIDICS 3,50 60° H
FLU05050   FLUIDICS 0,75 45° SF   FLU10030   FLUIDICS 0,60 80° HF   FLU15038    FLUIDICS 4,00 45° H
FLU05052   FLUIDICS 0,75 60° SF   FLU10032   FLUIDICS 0,65 45° HF   FLU15040    FLUIDICS 4,00 60° H
FLU05054   FLUIDICS 0,75 80° SF   FLU10034   FLUIDICS 0,65 60° HF   FLU15042    FLUIDICS 4,50 45° H
FLU05056   FLUIDICS 0,85 45° SF   FLU10036   FLUIDICS 0,65 80° HF   FLU15044    FLUIDICS 4,50 60° H
FLU05058   FLUIDICS 0,85 60° SF   FLU10038   FLUIDICS 0,75 45° HF   FLU15046    FLUIDICS 5,00 45° H
FLU05060   FLUIDICS 0,85 80° SF   FLU10040   FLUIDICS 0,75 60° HF   FLU15048    FLUIDICS 5,00 60° H
FLU05062   FLUIDICS 1,00 45° SF   FLU10042   FLUIDICS 0,75 80° HF   FLU15050    FLUIDICS 5,50 45° H
FLU05064   FLUIDICS 1,00 60° SF   FLU10044   FLUIDICS 0,85 45° HF   FLU15052    FLUIDICS 5,50 60° H
FLU05066   FLUIDICS 1,00 80° SF   FLU10046   FLUIDICS 0,85 60° HF   FLU15054    FLUIDICS 6,00 45° H
FLU05068    FLUIDICS 1,10 45° S   FLU10048   FLUIDICS 0,85 80° HF   FLU15056    FLUIDICS 6,00 60° H
FLU05070    FLUIDICS 1,10 60° S   FLU10050   FLUIDICS 1,00 45° HF   FLU15058    FLUIDICS 6,50 45° H
FLU05071    FLUIDICS 1,10 80° S   FLU10052   FLUIDICS 1,00 60° HF   FLU15060    FLUIDICS 6,50 60° H
FLU05072    FLUIDICS 1,25 45° S   FLU10054   FLUIDICS 1,00 80° HF   FLU15062    FLUIDICS 7,00 45° H
FLU05073    FLUIDICS 1,25 60° S   FLU10060   FLUIDICS 0,35 60° HF   FLU15064    FLUIDICS 7,00 60° H
FLU05074    FLUIDICS 1,25 80° S   FLU10062   FLUIDICS 0,35 45° HF   FLU15066    FLUIDICS 7,50 45° H
FLU05075    FLUIDICS 1,35 45° S   FLU15002    FLUIDICS 1,10 45° H   FLU15068    FLUIDICS 7,50 60° H
FLU05076    FLUIDICS 1,35 60° S   FLU15003    FLUIDICS 1,10 60° H   FLU15069    FLUIDICS 8,00 45° H
FLU05077    FLUIDICS 1,35 80° S   FLU15004    FLUIDICS 1,10 80° H   FLU15070    FLUIDICS 9,00 45° H
FLU05078    FLUIDICS 1,50 45° S   FLU15005    FLUIDICS 1,25 45° H   FLU15071    FLUIDICS 8,00 60° H
FLU05079    FLUIDICS 1,50 60° S   FLU15006    FLUIDICS 1,25 60° H   FLU15072    FLUIDICS 9,00 60° H
FLU05080…
