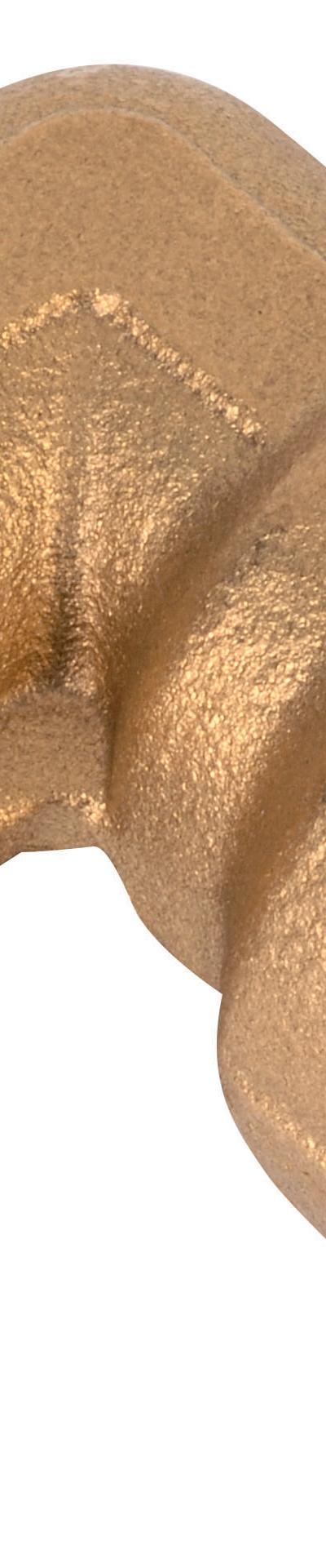

CBM Quick coupling 90° pressure reduction 1/4 3/8

CBM quick coupling provides 90° pressure reduction for fluid transfer applications, featuring 1/4" inlet and 3/8" outlet diameters. Ideal for hydraulic and pneumatic systems requiring directional flow control and…

SKU 3G-CBM-05680

Brand

CBM

Item

Quick coupling 90° pressure reduction 1/4 3/8

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

CBM

type

quick coupling 90° pressure reduction

inlet diameter

1/4"

outlet diameter

3/8"

Datasheet Content

Raccords rapides pour la réfrigération
et la climatisation




               3, rue Jules Verne Parc d’Activités Airspace • 33187 LE HAILLAN Cedex • FRANCE
                      Tél. 05 56 08 62 59 • Fax : 05 56 42 58 15 • www.cbm.fr • info@cbm.fr
                                   gamme de raccords rapides frigorifiques
                                           • HCFC & HFC gaz réfrigérants • Pression max : 45 bars • Température : -40°C à + 120°C
                                    • Enfoncer pour connecter • Corps robuste en bronze • Aucune fuite grâce à un système de double joint

  RACCORDS DROITS                   UNIONS DROITS            UNIONS COUDÉES 90°          UNIONS COUDÉES 45°                           UNIONS T                          T DE SERVICE
  pour raccordement unité         2 côtés raccords rapides    2 côtés raccords rapides     2 côtés raccords rapides            3 côtés raccords rapides              1 côté raccord rapide
   1 côté raccord taraudé /
    1 côté raccord rapide




                                                                                         UNIONS COUDÉES 45°                 UNIONS T                             UNIONS T
                                                                                          Code CBM             ø               Code CBM               ø            Code CBM           ø
RACCORDS DROITS                  UNIONS DROITS               UNIONS COUDÉES 90°           RAC54040            1/4              RAC54050               1/4          RAC54060          1/4
Code CBM            ø             Code CBM          ø         Code CBM          ø         RAC54042            3/8              RAC54052               3/8          RAC54062          3/8
 RAC54030    1/4 x 1/4 Taraudé     RAC54002        1/4         RAC54010         1/4       RAC54044            1/2              RAC54054               1/2          RAC54064          1/2
                                                                                          RAC54046            5/8              RAC54056               5/8          RAC54066          5/8
 RAC54032    3/8 x 3/8 Taraudé     RAC54004        3/8         RAC54012         3/8
 RAC54034    1/2 x 1/2 Taraudé     RAC54006        1/2         RAC54014        1/2        INSTALLATION
 RAC54036    5/8 x 5/8 Taraudé     RAC54008        5/8         RAC54016         5/8      n Couper Tube                     n Ebavurer                          n Marquer la
                                   RAC54009        3/4         RAC54017        3/4                                                                               profondeur
                                                                                                                                                                 (option)
OUTIL EXTRACTEUR
                                 UNIONS REDUCTION            UNIONS REDUCTION
                                 DROITS                      COUDÉES 90°                 n Pour démonter le raccord        Presser pour déconnecter            n Pousser le tube
                                                                                                                           le clip du raccord et sortir tube      dans le raccord
                                  Code CBM          ø         Code CBM          ø
                                   RAC54018      1/4 x 3/8     3G-CBM-05680      1/4 x 3/8
   Code CBM             ø
   RAC54080             1/4        RAC54020      3/8 x 1/2     RAC54026      3/8 x 1/2
   RAC54082             3/8        RAC54022      1/2 x 5/8     RAC54028      1/2 x 5/8   PRÉCAUTIONS
                                                                                         • Bien vérifier que le tube soit propre et que le raccord
   RAC54084             1/2
                                                                                            et le tube n’ont aucunes marques
   RAC54086             5/8                                                              • Ne pas mettre le doigt à l’intérieur du raccord                        www.cbm.fr • info@cbm.fr
Technologies et composants pour le génie climatique

CE

EU Declaration of Conformity
Déclaration de conformité EU

CBM déclare par la présente que les équipements sous pression énumérés ci-dessous ont été concus,
fabriqués et testés conformément aux exigences du réglement sur les équipements sous pression ;
Directive européenne 2014/68/UE.

Types : raccords rapides frigorifiques CAIMAN CONNECTORS

Raccords rapides frigorifiques CAIMAN CONNECTORS
Réfrigérant | Catégorie Code Désignation Diamétre

RAC54002 | Raccord rapide droit a pression 1/4" 1/4"

RAC54004 | Raccord rapide droit 4 pression 3/8" 3/8"

A4.3 | RAC54006 | Raccord rapide droit a pression 1/2" 1/2"

RAC54008 | Raccord rapide droit 4 pression 5/8" 5/8"

R22 RAC54009 | Raccord rapide droit 4 pression 3/4" 3/4"

R134A RAC54010 | Raccord rapide 90° a pression 1/4" 1/4"

R410A RAC54012 | Raccord rapide 90° a pression 3/8" 3/8"

acoon A4.3 | RAC54014 | Raccord rapide 90° a pression 1/2" 1/2"

R290 RAC54016 | Raccord rapide 90° a pression 5/8" 5/8"

R32 RAC54017 | Raccord rapide 90° a pression 3/4" 3/4"
vr RAC54018 | Raccord rapide droit a pression 1/4''*3/8" 1/4" x 3/8"
R407C A4.3_ | RAC54020 | Raccord rapide droit a pression 3/8''*1/2" 3/8" x 1/2"
R500 RAC54022 | Raccord rapide droit a pression 1/2"*5/8" 1/2" x 5/8"
aoe 3G-CBM-05680 | Raccord rapide a pression 90° réduction 1/4"*3/8" _| 1/4""x 3/8"
RAGA A4.3 | RAC54026 | Raccord rapide a pression 90° réduction 3/8"*1/2" _| 3/8" x 1/2"
RAC54028 | Raccord rapide a pression 90° réduction 1/2"*5/8" _| 1/2" x 5/8"

RAC54030 | Raccord rapide SAE 1/4" 1/4"

M3 RAC54032 | Raccord rapide SAE 3/8" 3/8"

RAC54034 | Raccord rapide SAE 1/2" 1/2"

RAC54036 | Raccord rapide SAE 5/8" 5/8"

3, rue Jules Verne - Parc d’Activités Airspace - 33187 - LE HAILLAN Cedex - FRANCE - Tél. +33 (0)5 56 08 62 59 - Fax +33 (0)5 56 42 58 15 - www.cbm.fr - info@cbm. fr
