What is the Satronic TF 836.3 relay used for?

The Satronic TF 836.3 is a burner control relay for industrial combustion systems, providing flame monitoring and safety control in heating and process applications. It manages ignition sequences and flame detection for burners up to 30 kg/h capacity.

What are the specifications of the Satronic TF 836.3?

The TF 836.3 features a 2–5 sec postignition time, 12 sec preheat time, 10 sec safety response, and supports burner capacity to 30 kg/h. It offers IP 44 protection, operates from 0 °C to +60 °C, and requires minimum 30 µA detector current.

Where can I buy a Satronic TF 836.3 relay in Singapore?

3G Electric supplies the Satronic TF 836.3 and handles full sourcing, logistics, customs clearance, and delivery across Singapore and Southeast Asia. Contact us for lead time and pricing on SKU REL20107.

How do I select the right Satronic burner control relay?

Select based on burner capacity (the TF 836.3 suits 30 kg/h burners), required postignition time, and safety certifications for your application. Consult equipment datasheets and verify ambient temperature compatibility before ordering.

Satronic Relay TF 836.3 - Burner Controls

Technical Documents

(1)

Technical Document 1

PDF Document

Complete Solution

Need installation, maintenance, or a bundled quote?

Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.

Product + Service Bundle QuoteQuote

Quick Inquiry

SatronicBurner Controls

Available to Order

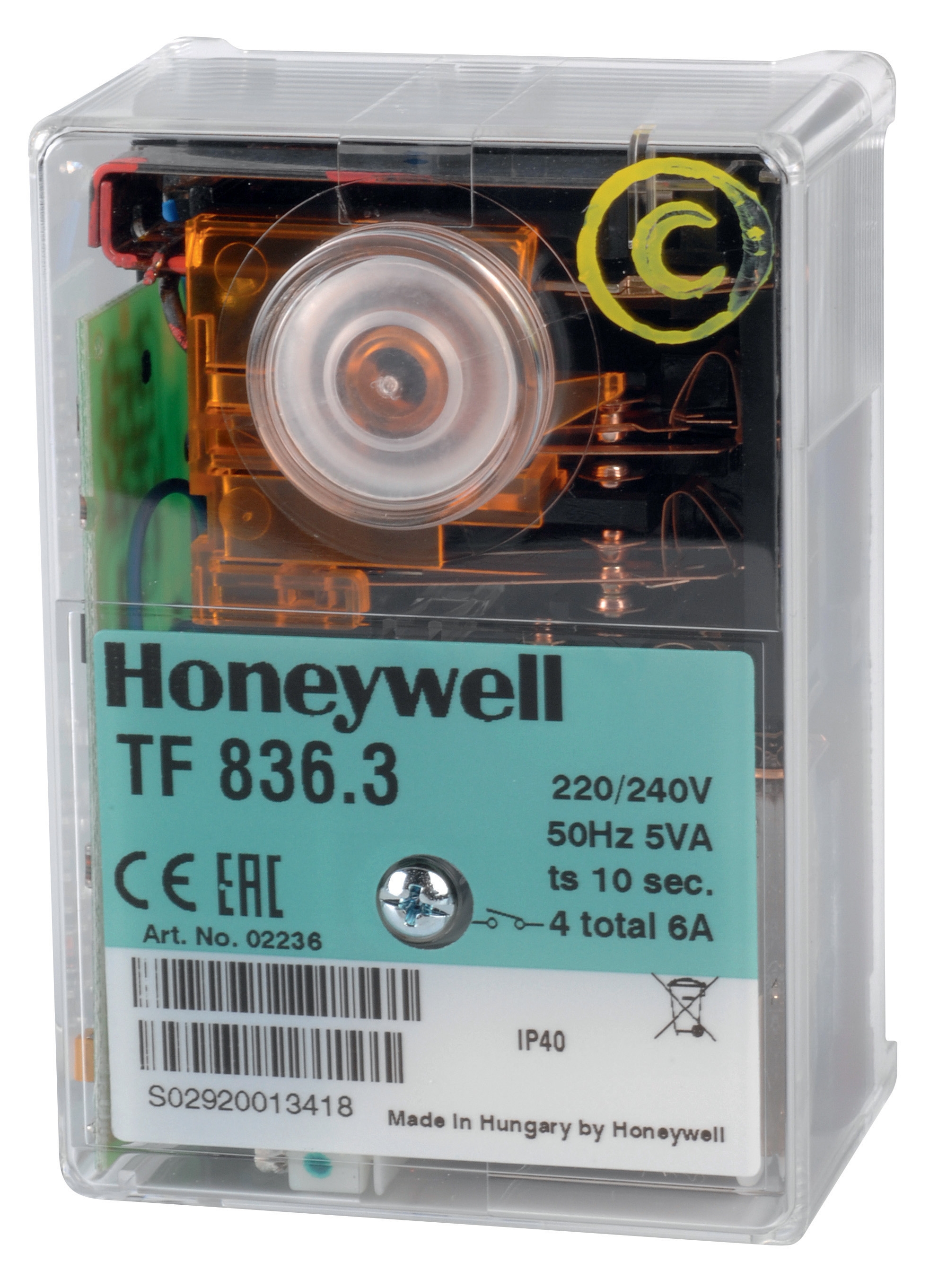

Satronic Relay TF 836.3

Satronic TF 836.3 is a burner control relay for industrial combustion systems, featuring a 2-5 second postignition time and 30 kg/h burner capacity. With IP 44 protection and 10 second safety response, it serves as a…

SKU 3G-CBM-05883

Also listed as: REL 20107 · REL-20107

Brand

Satronic

Item

Relay TF 836.3

Technical Specifications

Satronic

safety time

10 sec

preheat time

12 sec

burner capacity

30 kg/h

detector current

30 µA min

protection degree

IP 44

ambient temperature

0°C to +60°C

postignition time TF834

20 sec

postignition time TF836

2-5 sec

View Full Spec Sheet

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

SG-based team

Qty

WhatsApp Telegram

Create a free account to submit your RFQ and download technical documents.

Not sure this is the right part? Get a recommendation.

Pair with a Service

Installation & Commissioning

Professional setup and verification by our technicians

View

Ongoing Maintenance Plan

Scheduled preventive maintenance for this equipment

View

Product + Service Bundle

Combined quote for equipment, installation, and service

View

Solutions Engineering

Need guidance on product selection or system design?

Contact Our Engineering Team

Satronic Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Used in

Common applications for Satronic

Steam boiler systems — Satronic MZ770S photocell and ZT870 transformer for flame detection and ignition control.

Industrial gas furnaces — Satronic IRD820 infrared photocell and control modules for continuous flame supervision during high-temperature processes.

Oil and gas burner retrofit — Satronic replacement photocell connectors and transformers for upgrading legacy burner safety systems.

Commercial heating equipment — Satronic burner control assemblies in air heaters and unit heaters for building HVAC systems.

Process heater automation — Satronic flame-fail relays and photocell harnesses in thermal-oil and hot-water heating loops.

Preventive maintenance programs — Satronic spare-parts kits stocked for scheduled photocell and transformer replacement in high-availability industrial facilities.

Satronic Products

3G Electric supplies Satronic burner controls. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
