Is the Brahma Relay G 22 S03N TV15/TS10 available from 3G Electric?

Yes — 3G Electric supplies genuine Brahma products with in-stock availability on common SKUs and worldwide shipping.

How do I get a quote for the Brahma Relay G 22 S03N TV15/TS10?

Click "Request a Quote" on this page or add the product to your RFQ cart. Our engineers will respond within 24 hours with pricing, lead times, and technical recommendations.

Does 3G Electric provide technical support for burner controls?

Yes, our team of experienced engineers provides full technical support including product selection, installation guidance, commissioning, and after-sales service for all burner controls we distribute.

BrahmaBurner Controls

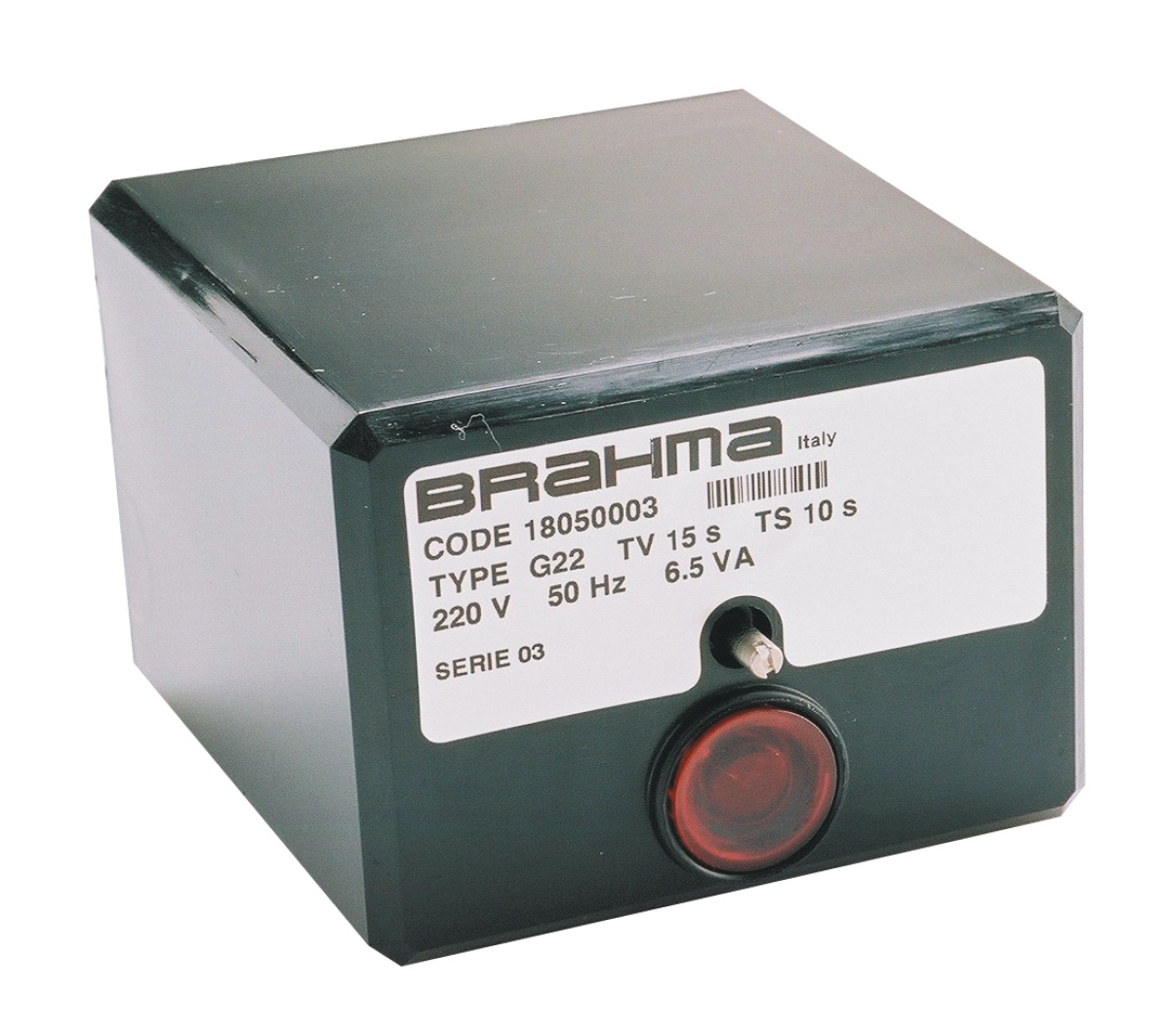

Brahma Relay G 22 S03N TV15/TS10

SKU 3G-CBM-05970

Also listed as: REL 40102 · REL-40102

Brand

Brahma

Item

Relay G 22 S03N TV15/TS10

Technical Specifications

Brahma

application

oil burner control

fuse 24V 12V

10 A fast-blow

motor rating

2.0 A cosφ > 0.4

fuse 220V 110V

4 A fast-blow

supply voltage

220V, 110V, 24V, 12V

thermostat rating

6.0 A cosφ > 0.4

weight including base

240 g

ignition transformer rating

2.0 A cosφ > 0.4

View Full Spec Sheet

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Brahma Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Brahma Relay G 22 S03N TV15/TS10 is an oil burner control unit operating at 220V, 110V, 24V, or 12V supply voltages. It features a 10 A fast-blow fuse for 24V/12V circuits and 4 A fast-blow fuse for 220V/110V circuits, with thermostat rating of 6.0 A. The complete unit weighs 240 g and integrates ignition control for industrial heating applications.

Used in

Common applications for Brahma

Italian light-oil burner ignition — T11 transformer as scheduled-maintenance replacement

Heavy-duty industrial burner racks — T15 / T18 / T36 for high-spark-energy applications

Combustion control-card swaps — CM31N / CM32N / CM391 onto existing Brahma-equipped burners

UV flame-detection retrofits — upgrading older photocell-based detection to solid-state UV

Safety-relay scheduled replacement — SRE / SM / FDB series on commercial gas / oil burners
