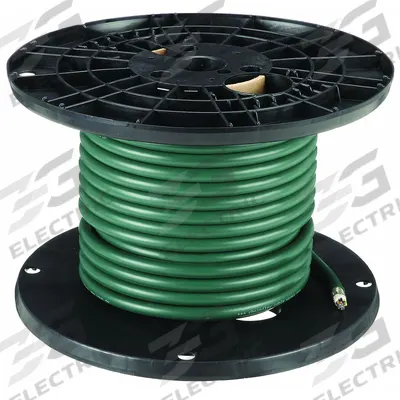

CHAINFLEX Control Cable: 18 AWG, 12 Conductors, 100 ft, PVC Jacket - Continuous Flexing Control Cables
CHAINFLEXContinuous Flexing Control Cables

CHAINFLEX Control Cable: 18 AWG, 12 Conductors, 100 ft, PVC Jacket

The CHAINFLEX CF6-07-12-100 is a continuous flexing control cable from the Chainflex series, featuring 18 AWG, 12 conductors, a PVC jacket, and a 600 V rating. It includes a ground, uses copper conductors with a…

SKU 3G-OTH-48023

Brand
CHAINFLEX
Item
Control Cable: 18 AWG, 12 Conductors, 100 ft, PVC Jacket
Category
Continuous Flexing Control Cables
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

CHAINFLEX
Manufacturer Part Number
CF6-07-12-100
Series
Chainflex
Standards
cRUus
Cable Series
CF6
Product Type
Control Cable
Includes Ground
Yes
Conductor Material
Copper
Conductor Color Code
Black with White Numbers
Resistance Properties
Heat Resistant
Conductor Configuration
Single
Minimum Bend Radius Factor - Fixed
4 x OD
Minimum Bend Radius Factor - E-Chain
6.8 x OD
Minimum Bend Radius Factor - Flexible
5 x OD
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CHAINFLEX Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CHAINFLEX CF6-07-12-100 is a continuous flexing control cable from the Chainflex series, featuring 18 AWG, 12 conductors, a PVC jacket, and a 600 V rating. It includes a ground, uses copper conductors with a single configuration, and is heat resistant. The cable meets cRUus standards and has minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.

Frequently Asked Questions

What is the CHAINFLEX CF6-07-12-100 control cable used for?

The CHAINFLEX CF6-07-12-100 is a continuous flexing control cable designed for automated machinery, robotics, and cable carrier (e-chain) systems. Its 18 AWG, 12-conductor construction with a PVC jacket and 600 V rating suits dynamic applications requiring repeated bending and heat resistance.

What are the specifications of the CHAINFLEX CF6-07-12-100?

This CHAINFLEX cable has 18 AWG, 12 conductors, copper single conductors, a PVC jacket, and a 600 V rating. It includes a ground, meets cRUus standards, and offers minimum bend radius factors of 4 x OD (fixed), 5 x OD (flexible), and 6.8 x OD (e-chain). It is heat resistant.

Where to buy the CHAINFLEX CF6-07-12-100 worldwide?

3G Electric supplies the CHAINFLEX CF6-07-12-100 control cable worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.

How to select the right CHAINFLEX continuous flex cable?

Select based on conductor count, AWG size, voltage rating, and bend radius requirements. For e-chain applications, ensure the cable's minimum bend radius factor (e.g., 6.8 x OD for CF6-07-12-100) matches your carrier. Verify temperature range and resistance properties against your environment.
