CHAINFLEX CF77-UL Continuous Flexing Control Cable - Continuous Flexing Control Cables
CHAINFLEXContinuous Flexing Control Cables

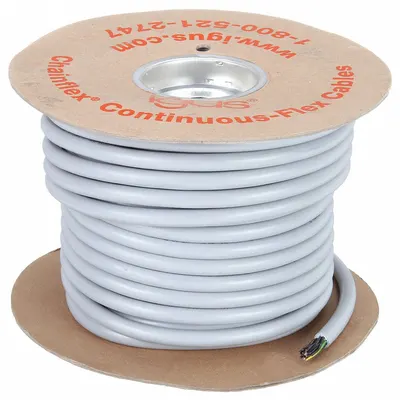

CHAINFLEX CF77-UL Continuous Flexing Control Cable

The CHAINFLEX CF77-UL Control Cable is a continuous flexing control cable with 18 AWG, 12 conductors, a PUR jacket, and a 1,000 V rating. It features copper conductors, a single conductor configuration, and includes…

SKU 3G-OTH-47863

Also listed as: CF77UL0712100 · CF77 UL 07 12 100

Brand
CHAINFLEX
Item
CF77-UL Continuous Flexing Control Cable
Category
Continuous Flexing Control Cables
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineerMessage via Telegram
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Local availability & support — Singapore

Local office
20 Woodlands Link #09-05, Singapore 738733
Phone
+65 8878 8355
Delivery
Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment
Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to
Singapore

Technical Specifications

CHAINFLEX
Manufacturer Part Number
CF77-UL-07-12-100
Series
Chainflex
Standards
cRUus
Cable Series
CF77-UL
Product Type
Control Cable
Includes Ground
Yes
Conductor Material
Copper
Conductor Color Code
Black with White Numbers
Resistance Properties
Notch Resistance
Conductor Configuration
Single
Minimum Bend Radius Factor - Fixed
4 x OD
Minimum Bend Radius Factor - E-Chain
6.8 x OD
Minimum Bend Radius Factor - Flexible
5 x OD

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CHAINFLEX Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CHAINFLEX CF77-UL Control Cable is a continuous flexing control cable with 18 AWG, 12 conductors, a PUR jacket, and a 1,000 V rating. It features copper conductors, a single conductor configuration, and includes a ground. The cable meets cRUus standards and offers notch resistance, with minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.

Frequently Asked Questions

What is the CHAINFLEX CF77-UL control cable used for?

The CHAINFLEX CF77-UL control cable is designed for continuous flexing applications in automated machinery, robotics, and cable carriers (e-chains). Its PUR jacket and notch resistance make it suitable for harsh industrial environments requiring reliable signal or control transmission.

What are the specifications of the CHAINFLEX CF77-UL-07-12-100 cable?

This cable has 18 AWG, 12 conductors with copper single conductors, a PUR jacket, and a 1,000 V rating. It includes a ground and meets cRUus standards. Minimum bend radius factors are 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.

Where to buy CHAINFLEX CF77-UL control cable worldwide?

3G Electric supplies the CHAINFLEX CF77-UL control cable worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time on this cable.

How to select the right CHAINFLEX continuous flex cable for an e-chain?

Select a cable with a minimum bend radius factor suitable for your e-chain, such as the CF77-UL's 6.8 x OD. Ensure conductor count and gauge match your control signals. Verify jacket material (PUR for abrasion resistance) and voltage rating (1,000 V) meet application requirements.

Used in

Common applications for CHAINFLEX
Automated assembly lines — Chainflex CF10 control cables for signal transmission in cable carriers
Robotic arms — Chainflex CF280ULH servo motor cables for power and feedback in high-flex joints
Material handling conveyors — Chainflex CF78-UL control cables with PUR jacket for oil resistance
CNC machining centers — Chainflex CF9-UL control cables rated at 1,000 V for spindle and axis control
Packaging machinery — Chainflex CFBUS-PVC-021 bus cables for CAN-Bus communication in continuous motion
Automotive manufacturing — Chainflex CF2 control cables with UV-resistant PUR jacket for outdoor gantry systems
