CHAR-LYNN Hydraulic Motor: H Series, 4-Bolt, 3.25 in Pilot, 17.9 cu in/rev - Hydraulic Motors
CHAR-LYNNHydraulic Motors

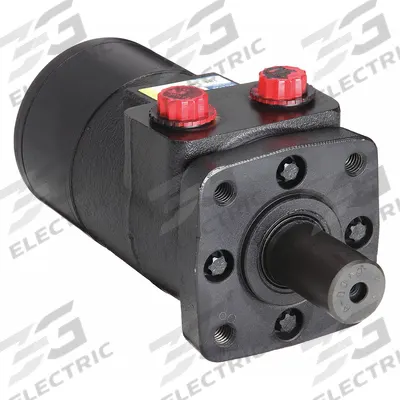

CHAR-LYNN Hydraulic Motor: H Series, 4-Bolt, 3.25 in Pilot, 17.9 cu in/rev

The CHAR-LYNN H Series Hydraulic Motor (MPN 101-1007) is a hydraulic motor with a 4-Bolt, 3.25 in Pilot mounting configuration. It features a displacement of 17.9 cu in/rev, a maximum RPM of 192, a pressure rating of…

SKU 3G-OTH-168385

Brand
CHAR-LYNN
Item
Hydraulic Motor: H Series, 4-Bolt, 3.25 in Pilot, 17.9 cu in/rev
Category
Hydraulic Motors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

CHAR-LYNN
Manufacturer Part Number
101-1007
Type
4-Bolt, 17.9 cu in/rev, 192 RPM Max. RPM
Pilot
3.25 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CHAR-LYNN Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CHAR-LYNN H Series Hydraulic Motor (MPN 101-1007) is a hydraulic motor with a 4-Bolt, 3.25 in Pilot mounting configuration. It features a displacement of 17.9 cu in/rev, a maximum RPM of 192, a pressure rating of 1350 psi, and a 1/2 in NPT port size.

Frequently Asked Questions

What is the CHAR-LYNN H Series Hydraulic Motor used for?

The CHAR-LYNN H Series Hydraulic Motor (MPN 101-1007) is used in industrial mobile and stationary hydraulic systems requiring reliable rotary power. Common applications include conveyors, winches, augers, and agricultural machinery where moderate speed and high torque are needed.

What are the specifications of the CHAR-LYNN 101-1007 hydraulic motor?

The CHAR-LYNN 101-1007 is an H Series hydraulic motor with a 4-Bolt, 3.25 in pilot mounting. It has a displacement of 17.9 cu in/rev, maximum RPM of 192, pressure rating of 1350 psi, and 1/2 in NPT port size. It is a CHAR-LYNN brand motor.

Where to buy CHAR-LYNN hydraulic motors worldwide?

You can source the CHAR-LYNN H Series Hydraulic Motor (101-1007) through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time.

How to select the right CHAR-LYNN H Series motor for my application?

To select the correct CHAR-LYNN H Series motor, match the displacement (17.9 cu in/rev), pressure rating (1350 psi), and port size (1/2 in NPT) to your system's flow and torque requirements. Verify the 4-Bolt, 3.25 in pilot mounting fits your mounting flange. Consult a CHAR-LYNN catalog for detailed performance curves.

Used in

Common applications for CHAR-LYNN
Agricultural machinery — CHAR-LYNN S Series hydraulic motor for auger drives in grain handling equipment
Construction equipment — CHAR-LYNN H Series rotary actuator for swing drives on mini-excavators
Industrial material handling — CHAR-LYNN SV1-16-CM solenoid valve for hydraulic clamping systems
Mobile hydraulics — CHAR-LYNN H Series motor for fan drive cooling systems in off-highway vehicles
Marine applications — CHAR-LYNN S Series motor for winch and capstan drives on deck equipment
Oil and gas — CHAR-LYNN seal kit 61334-000 for maintenance of hydraulic motors in wellhead control systems

CHAR-LYNN Products

3G Electric supplies CHAR-LYNN hydraulic motors. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
