CRYDOM Solid State Relay: Surface Mounted, 25 A Max Output Current, SCR - Surface-Mounted Relays
CRYDOMSurface-Mounted Relays

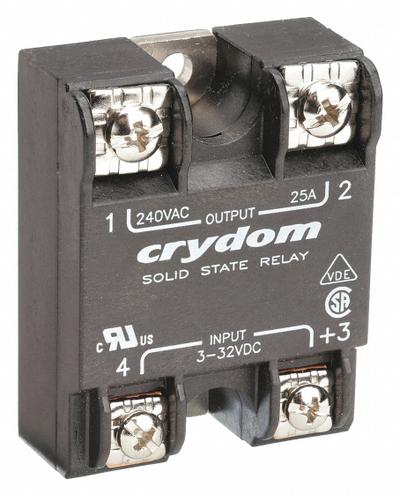

CRYDOM Solid State Relay: Surface Mounted, 25 A Max Output Current, SCR

The CRYDOM D2425 is a panel-mounted, surface-mounted solid-state relay with an AC output, SCR output, and a Form A switch configuration. It operates with an input current of 12 mA and an output voltage range of 24 to…

SKU 3G-OTH-37614

Brand
CRYDOM
Item
Solid State Relay: Surface Mounted, 25 A Max Output Current, SCR
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

CRYDOM
Manufacturer Part Number
D2425
Type
SCR, AC Output
Finger Safe
No
Current Type
AC
Input Current
12 mA
Mounting Style
Panel
Output Voltage
24 to 280V AC
Max Output Current
25 A
Switch Configuration
Form A
Voltage/Current Type
AC Output
Electrical Connection
Screw Clamp
Maximum Output Current without Heat Sink
16 A
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CRYDOM Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CRYDOM D2425 is a panel-mounted, surface-mounted solid-state relay with an AC output, SCR output, and a Form A switch configuration. It operates with an input current of 12 mA and an output voltage range of 24 to 280V AC, with a maximum output current of 16 A without a heat sink. The relay features a screw clamp electrical connection and is not finger-safe.

Used in

Common applications for CRYDOM
Industrial burner control — CRYDOM CL240A10C SSR for modulating gas valve actuation
Pump motor switching — CRYDOM C53TP25CH-10 SSR for single-phase AC motor start/stop
Process heating — CRYDOM EL240A10R-05 SSR for electric heater bank control
DIN-rail thermal management — CRYDOM HS151DR heat sink with fan for SSR cooling in control panels
Three-phase load switching — CRYDOM CD2450W2V dual SSR for two-phase control in industrial ovens
