Dayton Shaft Collar: 1-Piece, Inch, Round, Clamp-On, 1 3/4 in Bore Dia - Steel Shaft Collars
DaytonSteel Shaft Collars

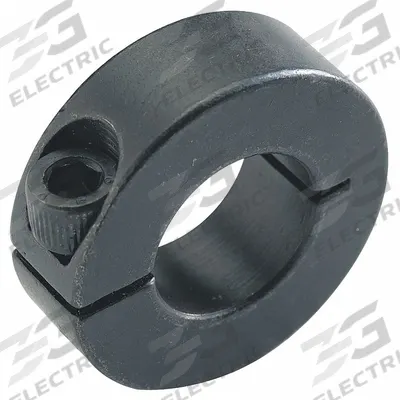

Dayton Shaft Collar: 1-Piece, Inch, Round, Clamp-On, 1 3/4 in Bore Dia

The DAYTON Shaft Collar (MPN 1L670) is a 1-piece steel shaft collar designed for inch-system applications. It features a round, clamp-on design with a 1 3/4 in bore diameter and a 2 3/4 in collar outside diameter.

SKU 3G-OTH-148081

Brand
Dayton
Item
Shaft Collar: 1-Piece, Inch, Round, Clamp-On, 1 3/4 in Bore Dia
Category
Steel Shaft Collars
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
1L670
Type
Inch, Round, Clamp-On
Bore Dia
1 3/4 in
Collar Outside Dia
2 3/4 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Shaft Collar (MPN 1L670) is a 1-piece steel shaft collar designed for inch-system applications. It features a round, clamp-on design with a 1 3/4 in bore diameter and a 2 3/4 in collar outside diameter.

Frequently Asked Questions

What is the DAYTON Shaft Collar 1L670 used for?

The DAYTON Shaft Collar 1L670 is used to secure components on a shaft in industrial machinery. Its clamp-on design allows precise positioning and prevents axial movement, making it suitable for conveyors, gearboxes, and power transmission systems.

What are the specifications of the DAYTON Shaft Collar 1L670?

The DAYTON Shaft Collar 1L670 is a 1-piece steel collar with a round, clamp-on design. It has a 1 3/4 in bore diameter and a 2 3/4 in collar outside diameter. It is designed for inch-system applications and is manufactured by DAYTON.

Where to buy the DAYTON Shaft Collar 1L670 worldwide?

You can source the DAYTON Shaft Collar 1L670 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide locations, ensuring reliable procurement for your operations.

How to install a DAYTON Shaft Collar 1L670?

To install the DAYTON Shaft Collar 1L670, slide it onto the shaft at the desired position, then tighten the clamp screw evenly using a hex key. Ensure the collar is perpendicular to the shaft to avoid binding. Always follow standard shaft-collar installation practices.

Used in

Common applications for Dayton
HVAC ventilation — DAYTON centrifugal upblast roof exhaust fans (SKU 7M7U3) for kitchen exhaust systems
Mechanical power transmission — DAYTON HTD timing pulleys (SKU 404GV0) for conveyor belt drives
Process water handling — DAYTON self-priming centrifugal pumps (SKU 2ZXT4) for dewatering or transfer
Roofing and building services — DAYTON fixed ventilated roof curbs (SKU 4HX59) for filtered supply fan installations
Material handling — DAYTON latch assemblies (SKU 2KEN4) for electric chain hoist hook safety
Industrial air movement — DAYTON downblast roof exhaust fans (SKU 3HFL9) for clean air exhaust in manufacturing plants
