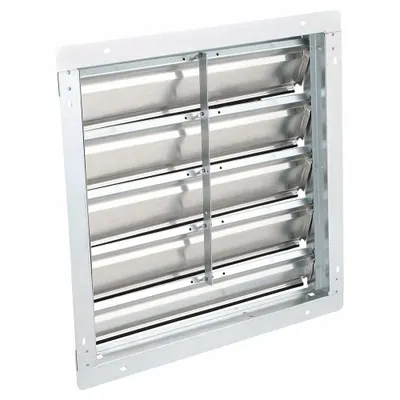

Dayton 23"H-W 5.75"L Alu Wall Backdraft Dampr: For 20 in Fan, Single Panel, 23 in H
The Dayton is a wall-mount backdraft damper designed for use with a 20-inch fan. It features a single-panel, flat blade construction with a horizontal airflow direction and vertical mounting position. The damper…
SKU 3G-OTH-76297
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The Dayton is a wall-mount backdraft damper designed for use with a 20-inch fan. It features a single-panel, flat blade construction with a horizontal airflow direction and vertical mounting position. The damper measures 23 inches in height, 23 inches in width, and 2.5 inches in depth, with a maximum air velocity of 2500 fpm.
Frequently Asked Questions
What is the Dayton wall-mount backdraft damper used for?
The Dayton is a single-panel, flat-blade backdraft damper that mounts vertically on a wall to prevent reverse airflow when a 20-inch fan is off. It is commonly used in industrial ventilation, exhaust, and make-up air systems to maintain one-way horizontal airflow.
What are the specifications of the Dayton backdraft damper?
The Dayton measures 23 in H x 23 in W x 2 1/2 in D, with a maximum air velocity of 2500 fpm. It features a flat blade, horizontal airflow direction, and vertical mounting position. The single-panel aluminum construction is designed for use with a 20-inch fan.
Where to buy the Dayton backdraft damper worldwide?
3G Electric supplies the Dayton backdraft damper to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for a quote and lead time on this and other Dayton ventilation products.
How to install the Dayton wall-mount backdraft damper?
Mount the Dayton vertically on a wall or duct opening, ensuring the airflow arrow points in the intended horizontal direction. Secure the flange with fasteners appropriate for the mounting surface. The damper blades should open freely with fan airflow and close by gravity when the fan stops.
Used in
Common applications for DaytonDayton Products
3G Electric supplies Dayton wall-mount backdraft dampers. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
