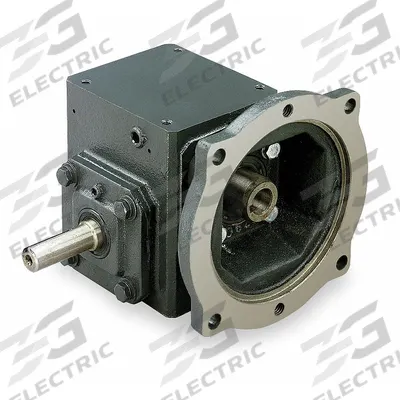

Dayton Speed Reducer: 50:1, 35 RPM, 1.5 hp Input Max, 1857 in-lb Output Max, Keyed - Direct-Drive Right-Angle Speed Reducers
DaytonDirect-Drive Right-Angle Speed Reducers

Dayton Speed Reducer: 50:1, 35 RPM, 1.5 hp Input Max, 1857 in-lb Output Max, Keyed

The DAYTON Speed Reducer (MPN 3GD56) is a direct-drive right-angle speed reducer with a 50:1 ratio, delivering 35 RPM output. It supports a maximum input of 1.5 hp and a maximum output torque of 1857 in-lb, featuring…

SKU 3G-OTH-139734

Brand
Dayton
Item
Speed Reducer: 50:1, 35 RPM, 1.5 hp Input Max, 1857 in-lb Output Max, Keyed
Category
Direct-Drive Right-Angle Speed Reducers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
3GD56
Type
35 RPM, 1857 in-lb Output Max, Keyed, 56C, Any Angle
Input Max
1.5 hp
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Speed Reducer (MPN 3GD56) is a direct-drive right-angle speed reducer with a 50:1 ratio, delivering 35 RPM output. It supports a maximum input of 1.5 hp and a maximum output torque of 1857 in-lb, featuring a keyed shaft and a 56C frame. This unit is designed for any-angle mounting.

Frequently Asked Questions

What is the DAYTON 3GD56 speed reducer used for?

The DAYTON 3GD56 direct-drive right-angle speed reducer is used in industrial machinery to reduce motor speed and increase torque. It is suitable for conveyors, packaging equipment, and material handling systems where a 50:1 ratio and 1857 in-lb output torque are required, with any-angle mounting flexibility.

What are the specifications of the DAYTON 3GD56 speed reducer?

The DAYTON 3GD56 speed reducer has a 50:1 ratio, 35 RPM output, 1.5 hp maximum input, and 1857 in-lb maximum output torque. It features a keyed shaft, 56C frame, and supports any-angle mounting. The manufacturer part number is 3GD56.

Where to buy the DAYTON 3GD56 speed reducer worldwide?

3G Electric supplies the DAYTON 3GD56 speed reducer worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your facility. Contact us to source this direct-drive right-angle speed reducer for your application.

How to install the DAYTON 3GD56 speed reducer?

Mount the DAYTON 3GD56 speed reducer securely on a rigid surface using any-angle orientation. Align the keyed shaft with the driven equipment, apply appropriate lubricant per manufacturer guidelines, and verify input power does not exceed 1.5 hp. Ensure proper coupling alignment to prevent premature wear.
