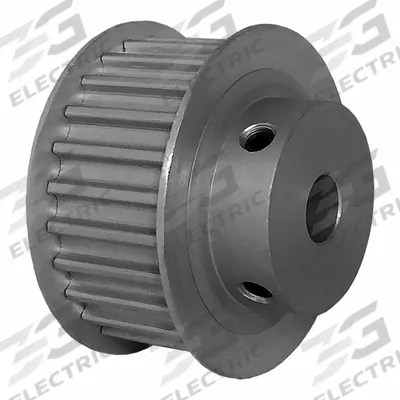

Dayton Timing Pulley: Curvilinear, Fixed, For 15 mm Belt Wd, 25 Teeth, 5 mm Pitch - HTD Section Fixed-Bore Timing Pulleys with Hub
DaytonHTD Section Fixed-Bore Timing Pulleys with Hub

Dayton Timing Pulley: Curvilinear, Fixed, For 15 mm Belt Wd, 25 Teeth, 5 mm Pitch

The DAYTON Timing Pulley is a curvilinear, HTD section fixed-bore timing pulley with hub, designed for the Powerhouse® belt series. It features 25 teeth, a 5 mm pitch, and accommodates a 15 mm belt width. Constructed…

SKU 3G-OTH-106796

Brand
Dayton
Item
Timing Pulley: Curvilinear, Fixed, For 15 mm Belt Wd, 25 Teeth, 5 mm Pitch
Category
HTD Section Fixed-Bore Timing Pulleys with Hub
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
25-5M15M6FA8
Type
Fixed, For 15 mm Belt Wd, Aluminum
Pitch
5 mm
Teeth
25
Finish
Clear Anodized
For Belt Series
Powerhouse®
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Timing Pulley is a curvilinear, HTD section fixed-bore timing pulley with hub, designed for the Powerhouse® belt series. It features 25 teeth, a 5 mm pitch, and accommodates a 15 mm belt width. Constructed from aluminum with a clear anodized finish, this pulley is identified by manufacturer part number 25-5M15M6FA8.

Frequently Asked Questions

What is the DAYTON Timing Pulley 25-5M15M6FA8 used for?

The DAYTON Timing Pulley is used in synchronous belt drive systems to transmit rotary motion and torque without slippage. It is designed for the Powerhouse® belt series and is commonly applied in industrial machinery, conveyors, and automation equipment requiring precise timing and positioning.

What are the specifications of the DAYTON Timing Pulley 25-5M15M6FA8?

This DAYTON Timing Pulley is an HTD section fixed-bore pulley with hub, featuring 25 teeth, a 5 mm pitch, and a 15 mm belt width. It is made of aluminum with a clear anodized finish. The manufacturer part number is 25-5M15M6FA8, and it is designed for the Powerhouse® belt series.

Where to buy the DAYTON Timing Pulley 25-5M15M6FA8 worldwide?

You can source the DAYTON Timing Pulley 25-5M15M6FA8 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this pulley.

How to select the correct DAYTON Timing Pulley for a Powerhouse® belt?

To select the correct DAYTON Timing Pulley, match the belt series (Powerhouse®), pitch (5 mm), number of teeth (25), and belt width (15 mm). Ensure the bore size fits your shaft. The fixed-bore design requires machining to your shaft diameter. Consult the manufacturer's catalog for compatibility.
