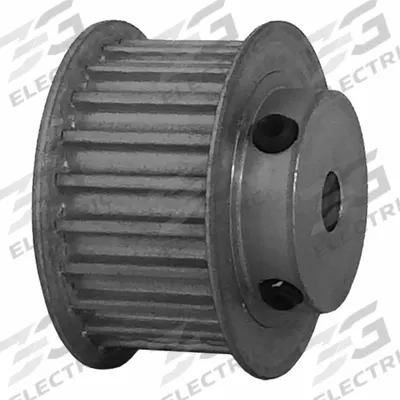

Dayton Timing Pulley: Curvilinear, Fixed, For 15 mm Belt Wd, 22 Teeth, 5 mm Pitch - HTD Section Fixed-Bore Timing Pulleys with Hub
DaytonHTD Section Fixed-Bore Timing Pulleys with Hub

Dayton Timing Pulley: Curvilinear, Fixed, For 15 mm Belt Wd, 22 Teeth, 5 mm Pitch

The DAYTON Timing Pulley is a curvilinear, HTD section fixed-bore timing pulley with hub, designed for the Powerhouse® belt series. It features 22 teeth with a 5 mm pitch and accommodates a 15 mm belt width…

SKU 3G-OTH-115058

Brand
Dayton
Item
Timing Pulley: Curvilinear, Fixed, For 15 mm Belt Wd, 22 Teeth, 5 mm Pitch
Category
HTD Section Fixed-Bore Timing Pulleys with Hub
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
22-5M15-6FA7
Type
Fixed, For 15 mm Belt Wd, Aluminum
Pitch
5 mm
Teeth
22
Finish
Clear Anodized
For Belt Series
Powerhouse®
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Timing Pulley is a curvilinear, HTD section fixed-bore timing pulley with hub, designed for the Powerhouse® belt series. It features 22 teeth with a 5 mm pitch and accommodates a 15 mm belt width, constructed from aluminum with a clear anodized finish (MPN 22-5M15-6FA7).

Frequently Asked Questions

What is the DAYTON Timing Pulley 22-5M15-6FA7 used for?

The DAYTON Timing Pulley is used in synchronous belt drive systems to transmit rotary motion without slip. It is designed for the Powerhouse® belt series, with 22 teeth and a 5 mm pitch, making it suitable for precision positioning in industrial machinery, conveyors, and automation equipment.

What are the specifications of the DAYTON Timing Pulley 22-5M15-6FA7?

This DAYTON pulley is a curvilinear HTD section fixed-bore type with hub. It has 22 teeth, a 5 mm pitch, and fits a 15 mm belt width. The aluminum construction features a clear anodized finish. The manufacturer part number is 22-5M15-6FA7.

Where to buy the DAYTON Timing Pulley 22-5M15-6FA7 worldwide?

3G Electric supplies the DAYTON Timing Pulley 22-5M15-6FA7 to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on this curvilinear fixed-bore pulley.

How to select the correct DAYTON Timing Pulley for a Powerhouse® belt?

To select the correct DAYTON pulley, match the belt series (Powerhouse®), pitch (5 mm), number of teeth (22), and belt width (15 mm). Ensure the bore size fits your shaft. The fixed-bore design with hub simplifies installation. 3G Electric can help verify compatibility for your drive system.
