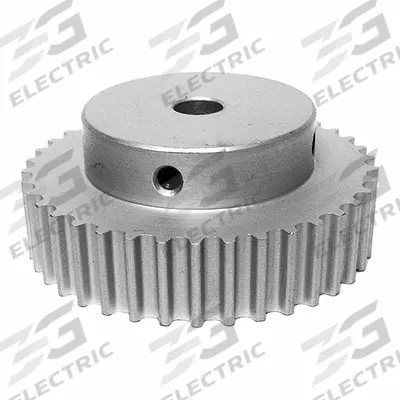

Dayton Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 26 Teeth, 5 mm Pitch - HTD Section Fixed-Bore Timing Pulleys with Hub
DaytonHTD Section Fixed-Bore Timing Pulleys with Hub

Dayton Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 26 Teeth, 5 mm Pitch

The DAYTON Timing Pulley is a curvilinear, HTD section fixed-bore timing pulley with hub, designed for the Powerhouse® belt series. It features a clear anodized finish, accommodates a 9 mm belt width, and has 26…

SKU 3G-OTH-112428

Brand
Dayton
Item
Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 26 Teeth, 5 mm Pitch
Category
HTD Section Fixed-Bore Timing Pulleys with Hub
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
26-5M09M6A8
Type
Fixed, For 9 mm Belt Wd, Aluminum
Pitch
5 mm
Teeth
26
Finish
Clear Anodized
For Belt Series
Powerhouse®
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Timing Pulley is a curvilinear, HTD section fixed-bore timing pulley with hub, designed for the Powerhouse® belt series. It features a clear anodized finish, accommodates a 9 mm belt width, and has 26 teeth with a 5 mm pitch. This aluminum pulley is identified by manufacturer part number 26-5M09M6A8.

Frequently Asked Questions

What is the DAYTON Timing Pulley 26-5M09M6A8 used for?

The DAYTON Timing Pulley is used in synchronous belt drive systems to transmit rotary motion and torque without slippage. It is designed for the Powerhouse® belt series and is commonly applied in industrial machinery, conveyors, and automation equipment requiring precise timing and positioning.

What are the specifications of the DAYTON Timing Pulley 26-5M09M6A8?

This DAYTON Timing Pulley is an HTD section fixed-bore pulley with hub, featuring 26 teeth and a 5 mm pitch. It accommodates a 9 mm belt width, has a clear anodized finish, and is made of aluminum. The manufacturer part number is 26-5M09M6A8.

Where to buy the DAYTON Timing Pulley 26-5M09M6A8 worldwide?

You can source the DAYTON Timing Pulley 26-5M09M6A8 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations, ensuring the pulley reaches your facility reliably.

How to select the correct DAYTON Timing Pulley for a Powerhouse® belt?

To select the correct DAYTON Timing Pulley, match the belt series (Powerhouse®), belt width (9 mm), and pitch (5 mm) to the pulley's tooth count and bore size. Ensure the pulley's HTD section profile aligns with the belt's curvilinear tooth design for proper engagement and load capacity.
