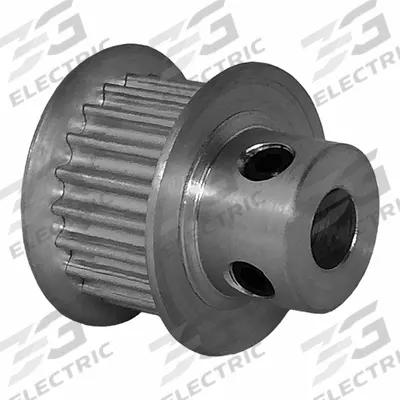

Dayton Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 20 Teeth, 3 mm Pitch - HTD Section Fixed-Bore Timing Pulleys with Hub
DaytonHTD Section Fixed-Bore Timing Pulleys with Hub

Dayton Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 20 Teeth, 3 mm Pitch

The DAYTON Timing Pulley is a curvilinear, fixed-bore HTD section pulley with a hub, designed for use with Powerhouse® series belts. It features 20 teeth, a 3 mm pitch, and accommodates a 9 mm belt width, constructed…

SKU 3G-OTH-110265

Brand
Dayton
Item
Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 20 Teeth, 3 mm Pitch
Category
HTD Section Fixed-Bore Timing Pulleys with Hub
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
20-3M09M6FA6
Type
Fixed, For 9 mm Belt Wd, Aluminum
Pitch
3 mm
Teeth
20
Finish
Clear Anodized
For Belt Series
Powerhouse®
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Timing Pulley is a curvilinear, fixed-bore HTD section pulley with a hub, designed for use with Powerhouse® series belts. It features 20 teeth, a 3 mm pitch, and accommodates a 9 mm belt width, constructed from aluminum with a clear anodized finish (MPN 20-3M09M6FA6).

Frequently Asked Questions

What is the DAYTON Timing Pulley 20-3M09M6FA6 used for?

The DAYTON Timing Pulley is used in synchronous belt drive systems to transmit rotary motion precisely without slippage. It is designed for Powerhouse® series belts and is commonly applied in industrial machinery, packaging equipment, and automation systems requiring accurate timing and positioning.

What are the specifications of the DAYTON Timing Pulley 20-3M09M6FA6?

This DAYTON pulley is an HTD section fixed-bore type with a hub, featuring 20 teeth, a 3 mm pitch, and a 9 mm belt width. It is made of aluminum with a clear anodized finish. The manufacturer part number is 20-3M09M6FA6, and it is designed for Powerhouse® series belts.

Where to buy the DAYTON Timing Pulley 20-3M09M6FA6 worldwide?

You can source the DAYTON Timing Pulley 20-3M09M6FA6 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations, ensuring you receive the correct OEM-sourced component for your application.

How to select the correct DAYTON Timing Pulley for a 9 mm belt?

To select the correct DAYTON Timing Pulley, match the belt width (9 mm), pitch (3 mm), and tooth profile (HTD curvilinear). Ensure the pulley bore size fits your shaft and that the pulley is rated for the Powerhouse® belt series. The 20-3M09M6FA6 model meets these criteria for fixed-bore applications.
