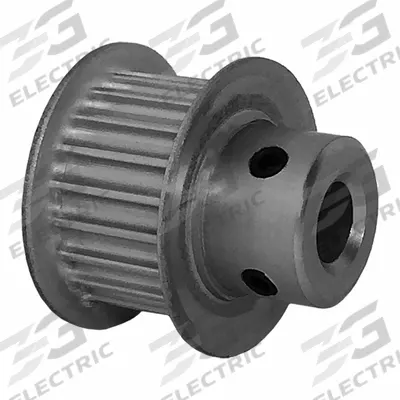

Dayton Timing Pulley: Curvilinear, Fixed, For 9 mm Belt Wd, 19 Teeth, 3 mm Pitch
The DAYTON Timing Pulley is a curvilinear, HTD section fixed-bore timing pulley with hub, designed for the Powerhouse® belt series. It features 19 teeth, a 3 mm pitch, and accommodates a 9 mm belt width, constructed…
SKU 3G-OTH-110337
Need installation or engineering help?
Ask a question
Product Description
The DAYTON Timing Pulley is a curvilinear, HTD section fixed-bore timing pulley with hub, designed for the Powerhouse® belt series. It features 19 teeth, a 3 mm pitch, and accommodates a 9 mm belt width, constructed from aluminum with a clear anodized finish (MPN 19-3M09M6FA6).
Frequently Asked Questions
What is the DAYTON Timing Pulley used for?
The DAYTON Timing Pulley is used in synchronous belt drive systems to transmit rotary motion precisely without slippage. It is designed for the Powerhouse® belt series and is commonly applied in industrial machinery, packaging equipment, and automation systems requiring accurate timing and positioning.
What are the specifications of the DAYTON Timing Pulley?
This DAYTON Timing Pulley is an HTD section fixed-bore pulley with hub, featuring 19 teeth, a 3 mm pitch, and a 9 mm belt width. It is made of aluminum with a clear anodized finish. The manufacturer part number is 19-3M09M6FA6, and it is designed for the Powerhouse® belt series.
Where to buy the DAYTON Timing Pulley worldwide?
You can source the DAYTON Timing Pulley through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we provide reliable sourcing for this and other DAYTON components.
How to select the correct DAYTON Timing Pulley for a drive system?
To select the correct DAYTON Timing Pulley, match the pitch (3 mm), number of teeth (19), and belt width (9 mm) to your Powerhouse® belt specifications. Ensure the bore size fits your shaft and that the pulley material (aluminum) suits the load and environment. Consult drive design guidelines for proper tension and alignment.
