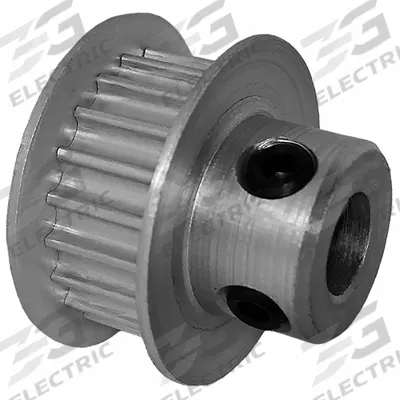

Dayton Timing Pulley: Curvilinear, Fixed, For 6 mm Belt Wd, 20 Teeth, 3 mm Pitch - HTD Section Fixed-Bore Timing Pulleys with Hub
DaytonHTD Section Fixed-Bore Timing Pulleys with Hub

Dayton Timing Pulley: Curvilinear, Fixed, For 6 mm Belt Wd, 20 Teeth, 3 mm Pitch

The DAYTON Timing Pulley: Curvilinear is an HTD Section Fixed-Bore Timing Pulley with Hub, designed for use with Powerhouse® belt series. It features a clear anodized finish, accommodates a 6 mm belt width, and has…

SKU 3G-OTH-105330

Brand
Dayton
Item
Timing Pulley: Curvilinear, Fixed, For 6 mm Belt Wd, 20 Teeth, 3 mm Pitch
Category
HTD Section Fixed-Bore Timing Pulleys with Hub
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
20-3M06-6FA3
Type
Fixed, For 6 mm Belt Wd, Aluminum
Pitch
3 mm
Teeth
20
Finish
Clear Anodized
For Belt Series
Powerhouse®
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Timing Pulley: Curvilinear is an HTD Section Fixed-Bore Timing Pulley with Hub, designed for use with Powerhouse® belt series. It features a clear anodized finish, accommodates a 6 mm belt width, and has 20 teeth with a 3 mm pitch, made of aluminum (MPN 20-3M06-6FA3).

Frequently Asked Questions

What is the DAYTON Timing Pulley 20-3M06-6FA3 used for?

The DAYTON Timing Pulley 20-3M06-6FA3 is used in synchronous belt drive systems to transmit rotary motion precisely without slippage. It is designed for Powerhouse® belt series and is commonly applied in industrial machinery, packaging equipment, and automation systems requiring accurate timing and positioning.

What are the specifications of the DAYTON Timing Pulley 20-3M06-6FA3?

The DAYTON Timing Pulley 20-3M06-6FA3 is an HTD Section Fixed-Bore Timing Pulley with Hub. It has 20 teeth, a 3 mm pitch, and accommodates a 6 mm belt width. The pulley is made of aluminum with a clear anodized finish and is designed for Powerhouse® belt series.

Where to buy the DAYTON Timing Pulley 20-3M06-6FA3 worldwide?

You can source the DAYTON Timing Pulley 20-3M06-6FA3 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this DAYTON part.

How to select the correct DAYTON timing pulley for a Powerhouse® belt?

To select the correct DAYTON timing pulley, match the belt series (Powerhouse®), belt width (6 mm), and pitch (3 mm) with the pulley's tooth count and bore size. The 20-3M06-6FA3 is a fixed-bore pulley with hub, so ensure your shaft diameter aligns with the bore. Consult DAYTON's catalog for compatibility.
