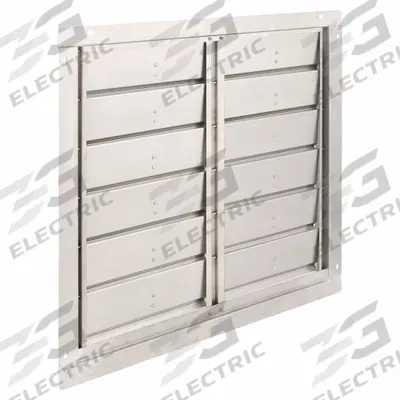

Dayton 27"H-W 5 1/4"L SS Backdraft Dampr: For 24 in Fan, Double Panel, 27 in H - Wall-Mount Backdraft Dampers
DaytonWall-Mount Backdraft Dampers

Dayton 27"H-W 5 1/4"L SS Backdraft Dampr: For 24 in Fan, Double Panel, 27 in H

The Dayton 4FZJ8 is a wall-mount backdraft damper designed for use with a 24-inch fan. It features flat blades, a horizontal airflow direction, and a vertical mounting position, with a maximum air velocity of 2500…

SKU 3G-OTH-76424

Brand
Dayton
Item
27"H-W 5 1/4"L SS Backdraft Dampr: For 24 in Fan, Double Panel, 27 in H
Category
Wall-Mount Backdraft Dampers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
4FZJ8
Type
Double Panel, 27 in W, Horizontal
D
2 in
H
27 in
Blade Type
Flat Blade
Airflow Direction
Horizontal
Mounting Position
Vertical
Maximum Air Velocity
2500 fpm
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton 4FZJ8 is a wall-mount backdraft damper designed for use with a 24-inch fan. It features flat blades, a horizontal airflow direction, and a vertical mounting position, with a maximum air velocity of 2500 fpm. The unit measures 27 inches in height, 27 inches in width, and 2 inches in depth, with a double-panel stainless steel construction.

Frequently Asked Questions

What is the Dayton 4FZJ8 backdraft damper used for?

The Dayton 4FZJ8 is a wall-mount backdraft damper that prevents reverse airflow when a 24-inch fan is off. It is used in industrial ventilation systems to maintain one-way horizontal airflow, with flat blades and a vertical mounting position.

What are the specifications of the Dayton 4FZJ8 backdraft damper?

The Dayton 4FZJ8 has a 27 in height, 27 in width, and 2 in depth, with double-panel stainless steel construction. It handles horizontal airflow at up to 2500 fpm, uses flat blades, and mounts vertically for use with a 24-inch fan.

Where to buy the Dayton 4FZJ8 backdraft damper worldwide?

3G Electric supplies the Dayton 4FZJ8 backdraft damper to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time on this industrial ventilation component.

How to install the Dayton 4FZJ8 backdraft damper?

Mount the Dayton 4FZJ8 vertically on a wall or duct opening, ensuring the airflow direction arrow matches your fan's discharge. Secure the frame with appropriate fasteners and verify the flat blades open freely under fan pressure and close when the fan stops.
