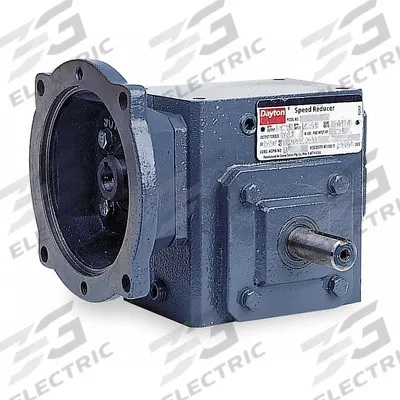

Dayton Speed Reducer: 5:1, 350 RPM, 3 hp Input Max, 496 in-lb Output Max, Keyed - Direct-Drive Right-Angle Speed Reducers
DaytonDirect-Drive Right-Angle Speed Reducers

Dayton Speed Reducer: 5:1, 350 RPM, 3 hp Input Max, 496 in-lb Output Max, Keyed

The DAYTON Speed Reducer (SKU 4RP49) is a direct-drive right-angle speed reducer with a 5:1 ratio, 350 RPM output, and a 56C frame. It supports a maximum input of 3 hp and a maximum output torque of 496 in-lb…

SKU 3G-OTH-139583

Brand
Dayton
Item
Speed Reducer: 5:1, 350 RPM, 3 hp Input Max, 496 in-lb Output Max, Keyed
Category
Direct-Drive Right-Angle Speed Reducers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
4RP49
Type
350 RPM, 496 in-lb Output Max, Keyed, 56C, Any Angle
Input Max
3 hp
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Speed Reducer (SKU 4RP49) is a direct-drive right-angle speed reducer with a 5:1 ratio, 350 RPM output, and a 56C frame. It supports a maximum input of 3 hp and a maximum output torque of 496 in-lb, featuring a keyed shaft and any-angle mounting.

Frequently Asked Questions

What is the DAYTON 4RP49 speed reducer used for?

The DAYTON 4RP49 direct-drive right-angle speed reducer is used to reduce motor speed and increase torque in industrial machinery. It is suitable for conveyors, packaging equipment, and material handling systems where a 5:1 ratio and 496 in-lb output torque are required.

What are the specifications of the DAYTON 4RP49 speed reducer?

The DAYTON 4RP49 speed reducer has a 5:1 ratio, 350 RPM output, and a 56C frame. It accepts a maximum input of 3 hp and delivers a maximum output torque of 496 in-lb. The shaft is keyed, and mounting is any-angle. The manufacturer part number is 4RP49.

Where to buy the DAYTON 4RP49 speed reducer worldwide?

3G Electric supplies the DAYTON 4RP49 speed reducer to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us for pricing and lead time on this direct-drive right-angle reducer.

How to select the right DAYTON speed reducer for an application?

To select the right DAYTON speed reducer, match the ratio, output torque, and input power to your motor and load. For the 4RP49, ensure your motor has a 56C frame and 3 hp or less. Confirm the output speed (350 RPM) and torque (496 in-lb) meet your driven equipment requirements.
