Dayton Shaft Collar: 1-Piece, Set Screw, 1 15/16 in Bore Dia, 3 in Collar Outside Dia - Steel Shaft Collars
DaytonSteel Shaft Collars

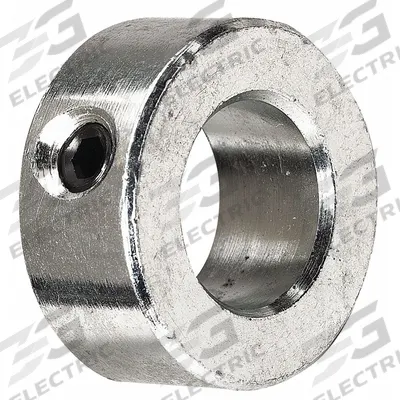

Dayton Shaft Collar: 1-Piece, Set Screw, 1 15/16 in Bore Dia, 3 in Collar Outside Dia

The DAYTON Shaft Collar (SKU 4X231) is a 1-piece steel shaft collar with a set screw locking mechanism. It features a 1 15/16 in bore diameter and a 3 in collar outside diameter. This component is designed for…

SKU 3G-OTH-147912

Brand
Dayton
Item
Shaft Collar: 1-Piece, Set Screw, 1 15/16 in Bore Dia, 3 in Collar Outside Dia
Category
Steel Shaft Collars
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
4X231
Type
Set Screw
EA
1
Bore Dia
1 15/16 in
Collar Outside Dia
3 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Shaft Collar (SKU 4X231) is a 1-piece steel shaft collar with a set screw locking mechanism. It features a 1 15/16 in bore diameter and a 3 in collar outside diameter. This component is designed for securing components onto shafts in industrial equipment.

Frequently Asked Questions

What is the DAYTON Shaft Collar 4X231 used for?

The DAYTON Shaft Collar 4X231 is used to secure components such as sprockets, pulleys, or bearings onto shafts in industrial equipment. Its set screw locking mechanism provides a firm grip, preventing axial movement during operation. It is commonly applied in conveyors, packaging machinery, and material handling systems.

What are the specifications of the DAYTON Shaft Collar 4X231?

The DAYTON Shaft Collar 4X231 is a 1-piece steel collar with a set screw locking mechanism. It has a bore diameter of 1 15/16 in and a collar outside diameter of 3 in. The manufacturer part number is 4X231, and it is sold individually (1 EA).

Where to buy the DAYTON Shaft Collar 4X231 worldwide?

You can source the DAYTON Shaft Collar 4X231 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we supply genuine DAYTON components for industrial applications.

How to install a set screw shaft collar like the DAYTON 4X231?

To install the DAYTON Shaft Collar 4X231, slide it onto the shaft at the desired position. Tighten the set screw using a hex key until it contacts the shaft securely. Ensure the collar is perpendicular to the shaft axis. For best results, apply thread-locking compound to the set screw to prevent loosening under vibration.

Used in

Common applications for Dayton
HVAC ventilation — DAYTON centrifugal upblast roof exhaust fans (SKU 7M7U3) for kitchen exhaust systems
Mechanical power transmission — DAYTON HTD timing pulleys (SKU 404GV0) for conveyor belt drives
Process water handling — DAYTON self-priming centrifugal pumps (SKU 2ZXT4) for dewatering or transfer
Roofing and building services — DAYTON fixed ventilated roof curbs (SKU 4HX59) for filtered supply fan installations
Material handling — DAYTON latch assemblies (SKU 2KEN4) for electric chain hoist hook safety
Industrial air movement — DAYTON downblast roof exhaust fans (SKU 3HFL9) for clean air exhaust in manufacturing plants
