Dayton Speed Reducer: 20:1, 88 RPM, 1 hp Input Max, 586 in-lb Output Max, Keyed - Direct-Drive Right-Angle Speed Reducers
DaytonDirect-Drive Right-Angle Speed Reducers

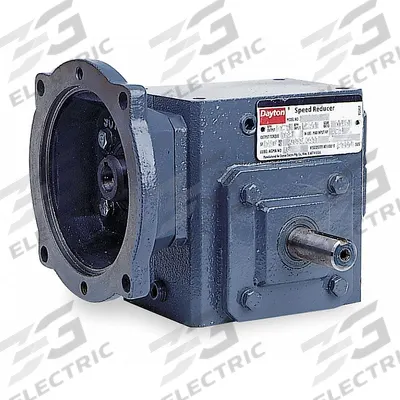

Dayton Speed Reducer: 20:1, 88 RPM, 1 hp Input Max, 586 in-lb Output Max, Keyed

The DAYTON Speed Reducer (SKU 4Z011) is a direct-drive right-angle speed reducer with a 20:1 ratio, delivering 88 RPM output and a maximum input of 1 hp. It supports a maximum output torque of 586 in-lb and features…

SKU 3G-OTH-139738

Brand
Dayton
Item
Speed Reducer: 20:1, 88 RPM, 1 hp Input Max, 586 in-lb Output Max, Keyed
Category
Direct-Drive Right-Angle Speed Reducers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
4Z011
Type
88 RPM, 586 in-lb Output Max, Keyed, 56C
Input Max
1 hp
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Speed Reducer (SKU 4Z011) is a direct-drive right-angle speed reducer with a 20:1 ratio, delivering 88 RPM output and a maximum input of 1 hp. It supports a maximum output torque of 586 in-lb and features a keyed shaft with a 56C frame. The unit is designed for mounting in any position except with the input motor shaft facing upward.

Frequently Asked Questions

What is the DAYTON 4Z011 speed reducer used for?

The DAYTON 4Z011 direct-drive right-angle speed reducer is used to reduce motor speed and increase torque in industrial machinery, conveyors, and material handling systems. It delivers 88 RPM output with 586 in-lb torque, suitable for applications requiring precise speed control and high torque at low speeds.

What are the specifications of the DAYTON 4Z011 speed reducer?

The DAYTON 4Z011 speed reducer has a 20:1 ratio, 88 RPM output, 1 hp maximum input, and 586 in-lb maximum output torque. It features a keyed shaft with a 56C frame and can be mounted in any position except with the input motor shaft facing upward.

Where to buy the DAYTON 4Z011 speed reducer worldwide?

3G Electric supplies the DAYTON 4Z011 speed reducer worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this direct-drive right-angle reducer.

How to select the right DAYTON speed reducer for your application?

To select the right DAYTON speed reducer, match the input horsepower (max 1 hp for 4Z011), output torque (586 in-lb), and ratio (20:1) to your load requirements. Ensure the mounting position is compatible—this unit cannot be mounted with the input shaft up. Verify the 56C frame and keyed shaft fit your motor.
